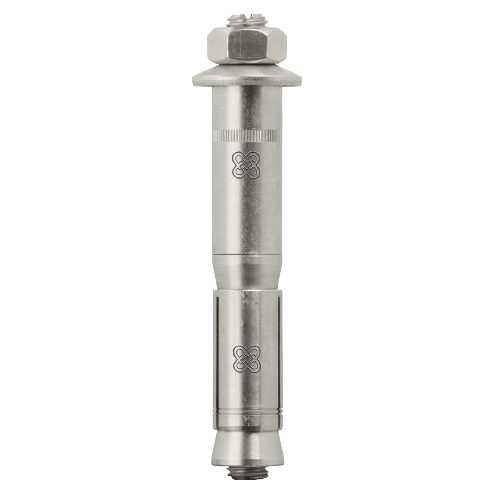

LIEBIG® Safety Bolt B A4

Specification

  • Applications

    • Fixing down of Steel Baseplates, Columns and Structural steel beams.
  • Properties

    •  Stainless steel A4
  • Technical specifications

    • Stainless steel A4
    • High performance double cone expansion anchor
    • Hex nut
    • Size Range M6 to M16.

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

Filter

Selected filters

    Orderidentifier Article Number Clamp thickness mm Thread diameter mm Unit
    LIEBIG® Safety Bolt B M6-10/45/5 A4 9650045205 5.0 10.0 50

    Specifications

    Clamp thickness
    5.0
    Thread diameter
    10.0
    Orderidentifier
    LIEBIG® Safety Bolt B M6-10/45/5 A4
    Unit
    50
    LIEBIG® Safety Bolt B M6-10/45/15 A4 9650045215 15.0 10.0 50

    Specifications

    Clamp thickness
    15.0
    Thread diameter
    10.0
    Orderidentifier
    LIEBIG® Safety Bolt B M6-10/45/15 A4
    Unit
    50
    LIEBIG® Safety Bolt B M12-20/80/15 A4 9650080215 15.0 20.0 10

    Specifications

    Clamp thickness
    15.0
    Thread diameter
    20.0
    Orderidentifier
    LIEBIG® Safety Bolt B M12-20/80/15 A4
    Unit
    10
    LIEBIG® Safety Bolt B M12-20/80/40 A4 9650080240 40.0 20.0 10

    Specifications

    Clamp thickness
    40.0
    Thread diameter
    20.0
    Orderidentifier
    LIEBIG® Safety Bolt B M12-20/80/40 A4
    Unit
    10
    LIEBIG® Safety Bolt B M8-12/55/15 A4 9652055215 15.0 12.0 25

    Specifications

    Clamp thickness
    15.0
    Thread diameter
    12.0
    Orderidentifier
    LIEBIG® Safety Bolt B M8-12/55/15 A4
    Unit
    25
    LIEBIG® Safety Bolt B M8-12/55/40 A4 9652055240 40.0 12.0 25

    Specifications

    Clamp thickness
    40.0
    Thread diameter
    12.0
    Orderidentifier
    LIEBIG® Safety Bolt B M8-12/55/40 A4
    Unit
    25
    LIEBIG® Safety Bolt B M10-15/70/15 A4 9655070215 15.0 15.0 25

    Specifications

    Clamp thickness
    15.0
    Thread diameter
    15.0
    Orderidentifier
    LIEBIG® Safety Bolt B M10-15/70/15 A4
    Unit
    25
    LIEBIG® Safety Bolt B M10-15/70/40 A4 9655070240 40.0 15.0 10

    Specifications

    Clamp thickness
    40.0
    Thread diameter
    15.0
    Orderidentifier
    LIEBIG® Safety Bolt B M10-15/70/40 A4
    Unit
    10
    LIEBIG® Safety Bolt B M16-25/100/15 A4 9655100215 15.0 25.0 5

    Specifications

    Clamp thickness
    15.0
    Thread diameter
    25.0
    Orderidentifier
    LIEBIG® Safety Bolt B M16-25/100/15 A4
    Unit
    5
    LIEBIG® Safety Bolt B M16-25/100/40 A4 9655100240 40.0 25.0 5

    Specifications

    Clamp thickness
    40.0
    Thread diameter
    25.0
    Orderidentifier
    LIEBIG® Safety Bolt B M16-25/100/40 A4
    Unit
    5
