Drive Socket
To be used to drive EJOT fasteners and is to be used directly into a screwgun

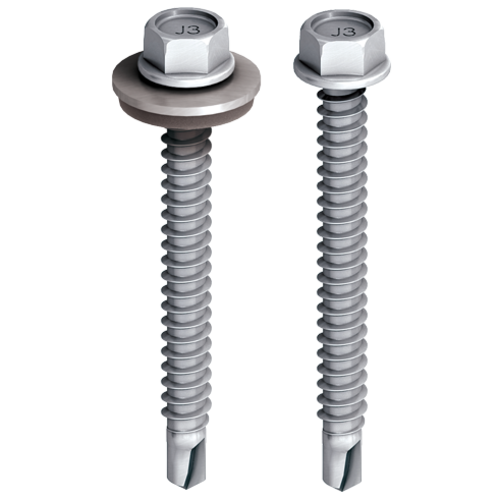

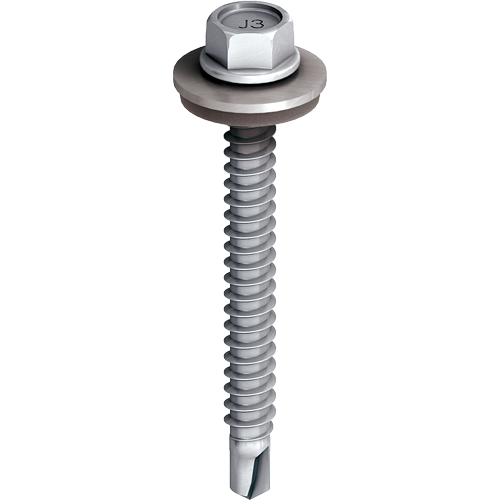

EJOT® JT3 3 5.5
Specification
-
Applications
- Profiled roofing and cladding sheets to light steel sections
- Aluminium roofing and cladding sheets to light steel sections
-
Properties
- Available unwashered
- Can be used with a S16 washer
-
Technical specifications
- Drive: 8mm clip hex one piece socket
- Steel sections from 1.2 to 3.0mm in thickness
- Material: A2 Austenitic Stainless Steel fastener with Carbon steel drill point
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Ø Sealing Washer mm | ø mm | Clamp thickness mm | Unit | Availability | * Price / 100 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| JT3 3 5.5 x 25 | 9900101401 | 25.0 | 0 - none | 5.5 | 1.2 - 10.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 25 S16 | 9900100603 | 25.0 | 16 | 5.5 | 1.2 - 8.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 25 S19 | 9900102012 | 25.0 | 19 | 5.5 | 1.2 - 8.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 35 | 7380302301 | 35.0 | 0 - none | 5.5 | 1.2 - 18.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 35 S16 | 3592511331 | 35.0 | 16 | 5.5 | 0.0 - 16.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 50 | 7380303301 | 50.0 | 0 - none | 5.5 | 1.2 - 33.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 50 S16 | 3592811331 | 50.0 | 16 | 5.5 | 1.2 - 31.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 50 S19 | 9900000163 | 50.0 | 19 | 5.5 | 1.2 - 31.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 50 A29 | 9900000153 | 50.0 | 29 | 5.5 | 1.2 - 30.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 70 | 7380379301 | 70.0 | 0 - none | 5.5 | 21.0 - 53.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 70 S16 | 3593911331 | 70.0 | 16 | 5.5 | 1.2 - 51.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 70 S19 | 9900030559 | 70.0 | 19 | 5.5 | 21.0 - 51.0 | 3.0 | Hexagon 8mm AF | 100 | |||
| JT3 3 5.5 x 70 A29 | 9900030560 | 70.0 | 29 | 5.5 | 21.0 - 50.0 | 3.0 | Hexagon 8mm AF | 100 | |||
Delivery status:
- Stock
- No Stock
Further Products
EPC Coloured cap
For the top of EJOT 8mm Hex fasteners to match the colour of the cladding/panels
