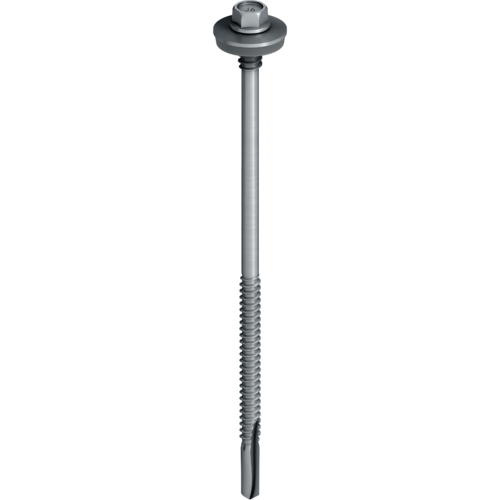

EJOT® JT6 D12H 5.5/6.3

Specification

  • Applications

    • For steel profile insulated composite panels to hot rolled steel sections 4.0mm - 12.0mm in thickness
  • Properties

    • Available unwashered
    • Can be used in conjunction with S16 and S19 stainless / EPDM and A29 aluminium vulcanised sealing washers
    • S16 washed variants can be used in connection with our trapezoidal and sinusoidal storm washers
  • Technical specifications

    • Material: A4 Austenitic Stainless Steel fastener with Carbon steel drill point
    • Drive: 8mm clip hex one piece socket
    • Steel sections from 4.0 to 12.0mm in thickness
    • Diameter: 5.5mm
    • High thread: 6.3mm

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm Ø Sealing Washer mm ø mm Clamp thickness mm Unit Availability * Price / 100
    JT6-D-12H-5,5/6,3x115 7380723339 115.0 0 - none 5.5 66.0 - 90.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    115.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    66.0 - 90.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x115
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x115 S19 9900108942 115.0 19 5.5 68.0 - 90.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    115.0
    Ø Sealing Washer mm
    19
    ø
    5.5
    Clamp thickness
    68.0 - 90.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x115 S19
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x135 7380708339 135.0 0 - none 5.5 80.0 - 110.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    135.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    80.0 - 110.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x135
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x135 S16 3555481911 135.0 16 5.5 82.0 - 110.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    135.0
    Ø Sealing Washer mm
    16
    ø
    5.5
    Clamp thickness
    82.0 - 110.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x135 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x135 S19 3555482911 135.0 19 5.5 82.0 - 110.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    135.0
    Ø Sealing Washer mm
    19
    ø
    5.5
    Clamp thickness
    82.0 - 110.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x135 S19
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x155 7380709339 155.0 0 - none 5.5 102.0 - 130.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    155.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    102.0 - 130.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x155
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x155 S16 3555781911 155.0 16 5.5 102.0 - 130.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    155.0
    Ø Sealing Washer mm
    16
    ø
    5.5
    Clamp thickness
    102.0 - 130.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x155 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x155 S19 3555782911 155.0 19 5.5 102.0 - 130.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    155.0
    Ø Sealing Washer mm
    19
    ø
    5.5
    Clamp thickness
    102.0 - 130.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x155 S19
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5.5/6.3 x 175 7380710339 175.0 0 - none 5.5 118.0 - 150.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    175.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    118.0 - 150.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5.5/6.3 x 175
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT6-D-12H-5,5/6,3x175 S16 3556581912 175.0 16 5.5 120.0 - 150.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    175.0
    Ø Sealing Washer mm
    16
    ø
    5.5
    Clamp thickness
    120.0 - 150.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT6-D-12H-5,5/6,3x175 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
