Drive Socket
To be used to drive EJOT fasteners and is to be used directly into a screwgun

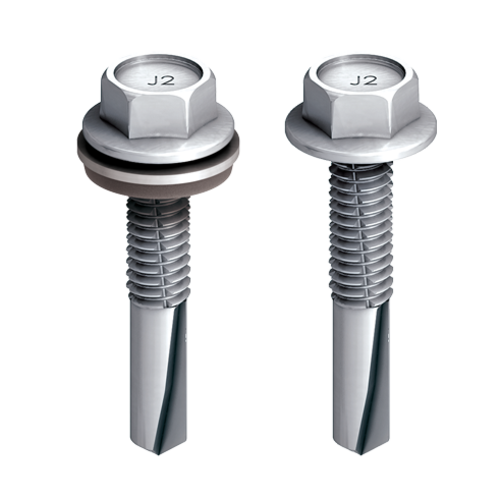

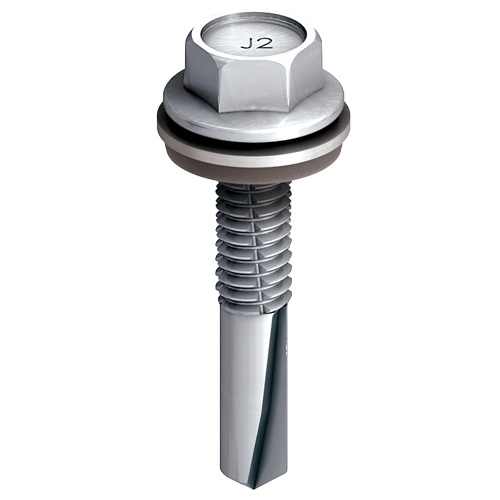

EJOT® JT2 12 6.3
Specification
-
Applications
- For profied roofing and cladding sheets to steel substructures where higher shear load is required
-
Properties
- Available unwashered
- Suitable for where a higher shear load is required
- Can be used in conjunction with A15 and A19 aluminium/ EPDM vulcanised washers
-
Technical specifications
- Drive: 10mm Hex One Piece Socket
- Steel sections from 4.0 to 12.0mm in thickness
- Material: Carbon Steel with Zinc finish
Read & Download Roofing and Cladding Brochure
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities.
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Ø Sealing Washer mm | ø mm | Clamp thickness mm | Unit | Availability | * Price / 100 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| JT2 12 6.3 x 35 | 3595600614 | 35.0 | 0 - none | 6.3 | 4.0 - 16.0 | 12.0 | Hexagon 10mm AF | 100 | |||
| JT2 12 6.3 x 35 A15 | 3595621611 | 35.0 | 15 | 6.3 | 4.0 - 14.0 | 12.0 | Hexagon 10mm AF | 100 | |||
| JT2 12 6.3 x 35 A19 | 9900030331 | 35.0 | 19 | 6.3 | 4.0 - 14.0 | 12.0 | Hexagon 10mm AF | 100 | |||
| JT2 12 6.3 x 50 | 3595800614 | 50.0 | 0 - none | 6.3 | 4.0 - 30.0 | 12.0 | Hexagon 10mm AF | 100 | |||
| JT2 12 6.3 x 50 A15 | 3595821614 | 50.0 | 15 | 6.3 | 4.0 - 28.0 | 12.0 | Hexagon 10mm AF | 100 | |||
| JT2 12 6.3 x 50 A19 | 9900030126 | 50.0 | 19 | 6.3 | 4.0 - 28.0 | 12.0 | Hexagon 10mm AF | 100 | |||
Delivery status:
- Stock
- No Stock
Similar Products
HS 5.5
For fixing internal steel sections, support bars and brackets
