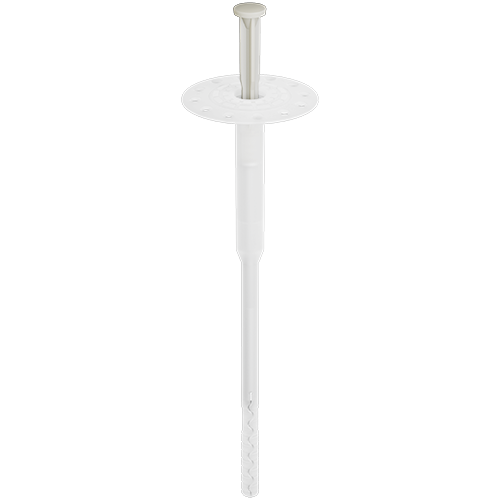

EJOT® ejotherm® H1

Specification

  • Applications

    • Approved for all material classes (A, B, C, D, E)
    • For use with all insulation material types
    • For surface fixed installation
    • With European Technical Assessment (ETA)
  • Properties

    • Approved for concrete, solid and perforated masonry
    • Solid steel nail (break-proof)
    • Low profile washer face
    • Plastic injection element to reduce thermal transmission (0,001 W/K)
    • Can be used with additional spreader washers e.g. VT90, SBL140
    • Short embedment depth, reduced drilling
    • High loads for your security
    • Economic anchor usage
    • Pre-mounted nail for quick installation
    • Optimised anchor expansion zone for higher load bearing
    • Increased length spectrum up to 355 mm
  • Technical specifications

    • Anchor diameter: 8 mm
    • Washer diameter: 60 mm
    • Drill hole depth h
    • material class A, B, C, D ≥ 35 mm
    • material class E ≥ 55 mm
    • Embedment depth h
    • material class A, B, C, D ≥ 25 mm
    • material class E ≥ 45 mm
    • Point thermal transmission X: 0.001 W/K
    • Use categories acc. to ETA: A, B, C, D, E
    • European Technical Assessment: ETA-11/0192

    Characteristic loads:

    • Concrete C 12/5 as per EN 206:2013+A1:2016: 0,9 kN
    • Concrete C 20/25 - C 50/60 as per  EN 206:2013+A1:2016: 1,2 kN
    • Concrete C 20/25 - C 50/60 as per EN 206:2013+A1:2016 thin Concrete members (thin sheet): 1,2 kN
    • Clay bricks, MZ as per EN 771-1:2011+A1:2015: 1,2 kN
    • Sand-lime-solid bricks KS as per EN 771-2:2011+A1:2015: 1,2 kN
    • Vertically perforated clay bricks, HLz as per EN 771-1:2011+A1:2015: 0,752) kN
    • Sand-lime perforated bricks KSL as per EN 771-2:2011+A1:2015: 1,23) kN
    • lightweight aggregate concrete LAC, as per EN 1520:2011, EN 771-3:2011+ A1:2015: 1,1 kN
    • Autoclaved aerated concrete as per EN 771-4:2011+ A1:2015: 0,9 kN

    2) The value applies only for outer web thickness ≥ 11 mm; otherwise, the characteristic loads resistance shall be determined by job site pull-out tests.
    3)The value applies only for outer web thickness ≥ 20 mm; otherwise, the characteristic loads resistance shall be determined by job site pull-out tests.

ETICS products are only available from system suppliers. Please email salesuk@ejot.com or call 01977 687040 for further information.
