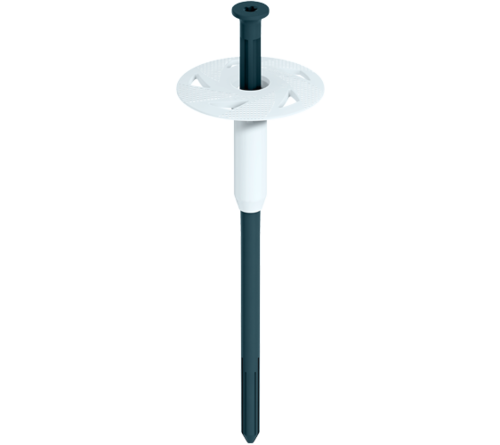

EJOT® ejotherm® Screw-in anchor S1

Applications

• For attaching external thermal insulation composite systems with a plaster layer
• For anchoring in all surfaces (A, B, C, D, E)
• For all insulation panels
• For surface-flush mounting

Properties

• Approved for all building material classes (A, B, C, D, E)
• High level of setting and assembly comfort
• Fast screw-in time
• Optimized thermal bridge (0.000W/K)
• Can be mounted with additional plates VT 90 and SBL 140 plus

Technical specifications

• Dowel diameter: 8 mm
• Plate diameter: 60 mm
• Drill hole depth h1 ≥  40 mm (60 mm)
• Anchoring depth h if ≥ 30mm (50 mm)
• Screw drive: IPR 30 (5-star)
• Point-related heat transfer coefficient λ: 0.000 W/K
• New construction: 10 mm adhesive thickness
• Old building: 10 mm adhesive thickness and 20 mm old plaster
• Usage categories ETA*: A, B, C, D, EValues ​​in brackets: Anchoring in aerated concrete

Characteristic loads

• A: Normal concrete C 16/20 - C 50/60 according to EN 206-1: 1.5 kN
• A: Weather shells made of concrete C 16/20 - C 50/60: 1.4 kN
• B: Brick (Mz) according to EN 771-1/DIN 105: 1.5 kN
• B: Kalksandvollstein (KS) according to EN 771-2 / DIN EN 106: 1.5 kN
• C: Perforated brick (Hlz) according to EN 771-2 / DIN 105; Gross density ≥ 0.8 kg/dm³
• C: Kalksandlochstein (KSL) according to EN 771-2 / DIN EN 106: 1.5 kN
• C: Hollow block made of lightweight concrete (HbL) according to EN 771-3 / DIN 18151: 0.9 kN
• D: Haufwerksporiger lightweight concrete (LAC 4 - LAC 25) according to EN 1520: 0.9 kN
• E: Aerated concrete (AAC 4 - AAC 7) according to EN 771-4: 0.75 kN
