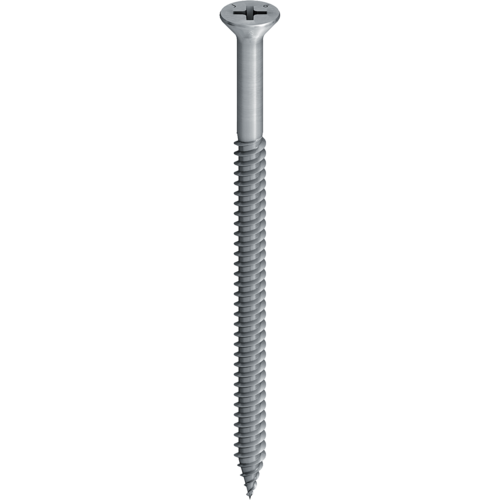

EJOTĀ® VHT E 4.8
![](/medias/sys_master/images/images/h7b/h95/8898941354014/Logo-EPD.png)
![](/medias/sys_master/images/images/hf6/hcd/8854408200222/ETA-CE-Kombi-4C-klein.png)
![](/medias/sys_master/images/images/h2d/h1a/8856620236830/Rostfrei-Stainless.png)
![](/medias/sys_master/images/images/hd2/hdc/8898947547166/Logo-.png)
Specification
-
Applications
- To fix roofing membrane to substructures made of sheet steel ≥ 0.5 mm ≤ 0.75 mm, timber and wood-based material
- New buildings and renovations
- For combination with EJOT® stress plates
- For thicker and/or two-ply sheet steel we recommend use of the EJOT Dabo® screw TKE-4.8.
-
Properties
- A4 stainless steel with hardened steel drill point
- Thread length 100 mm
- Can be delivered belted for EJOT® ECOSET installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOSET HTK installation tool.
- With bugle head
-
Technical specifications
- Diameter: 4.8 mm
- Drilling capacity: 0.75 mm
- Drive: Cross recess PH 2
Length determination (min. lengths)
- Sheet steel: Insulation thickness + 20 mm
- Timber: Insulation thickness + 30 mm
