EJOT® DDS-ZB

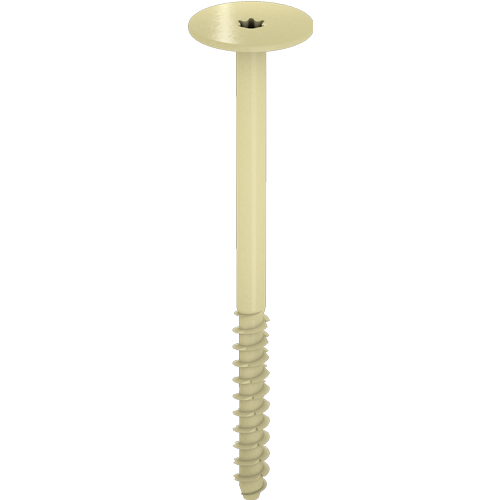

dds-zb-pos2-500x500

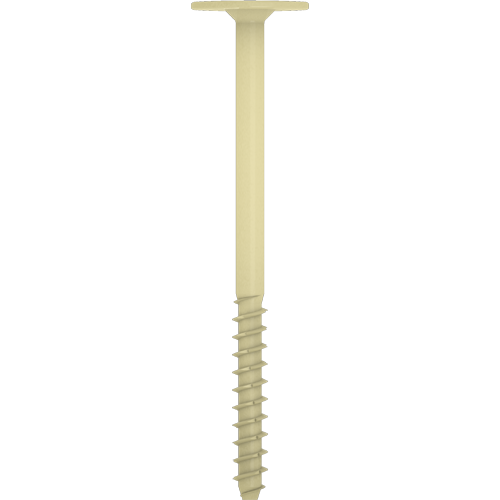

dds-zb-pos1-500x500

Specification

  • Applications

    • For a secure fastening of ceiling and acoustic boards
    • With German DIBt approval
    • Recommended substrate: Concrete

  • Properties

    • For installation in cracked and non-cracked concrete
    • Steel screw with duplex coating and self-tapping thread for reliable fastening
    • Corrosion resistance classification C1-C3
    • Easy installation: drill, fasten, done
    • Minimal embedment depth
    • Standard screw head colour: beige

  • Technical specifications

    • Head diameter: 24 mm
    • Drill hole diameter: 6 mm
    • Drill hole depth h1 ≥: 35mm
    • Embedment depth hef ≥: 25 mm
    • Screw drive: TX30
    • Recommended substrate: Concrete
    • Building material class: A2
    • Corrosion resistance classification: C1 - C3
    • DIBt approval: Z-21.8-1980


    Characteristic load:

    • Cracked and uncracked normal weight concrete C 20/25 - C 50/60 NRK<7sub>: 0.9 kN


    *For further technical specification, please refer to the relevant technical data sheet.
