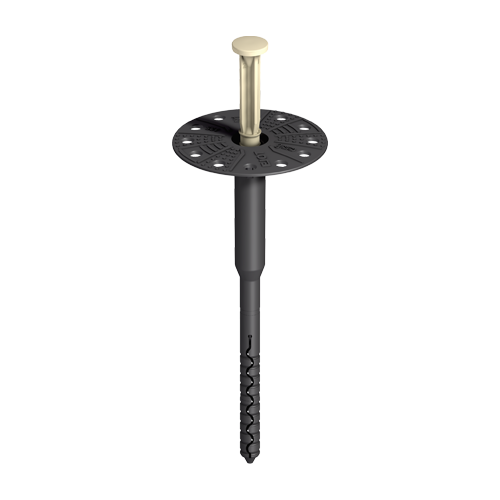

EJOT® N1

Applications

• For fixing of insulation in ETICS and Rainscreen systems.
• Useable for all building materials (A, B, C, D, E)

Properties

• Solid steel nail, pre mounted.
• Low thermal transmission
• Longer expansion zone for security more problematic substrates.
• Low profile washer face
• Can be used with additional extension washer
• High loads

Technical specifications

Anchor nominal diameter: 8 mm
Washer diameter: 60 mm
Drill hole depth h1 ≥

• Use categories A, B, C: 35 mm
• Use categories D, E:
          N1 95-115 mm: 55 mm
          N1 135 - 275 mm: 75 mm

Embedment depth hef ≥

• Use categories A, B, C: 25 mm
• Use categories D, E:
          N1 95-115 mm: 45 m
          N1 135 - 275 mm: 65 mm

Point thermal transmission λ: 0.002 W/K
Use categories A, B, C, D, E
