BA-V Plus
Great for embedment in cracked and non-cracked concrete

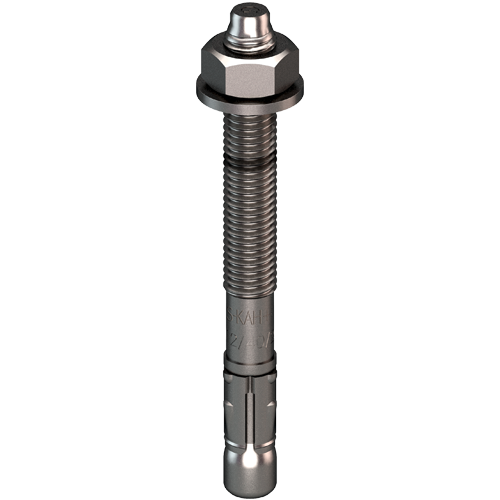

EJOT® BA-E Plus
Specification
-
Applications
- For embedment in cracked and non-cracked concrete ≥ C20/25
- Also suitable for natural stone
- Dry indoor areas
- Wet areas
- Outdoors, including in industrial atmosphere and coastal environentsFor embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures

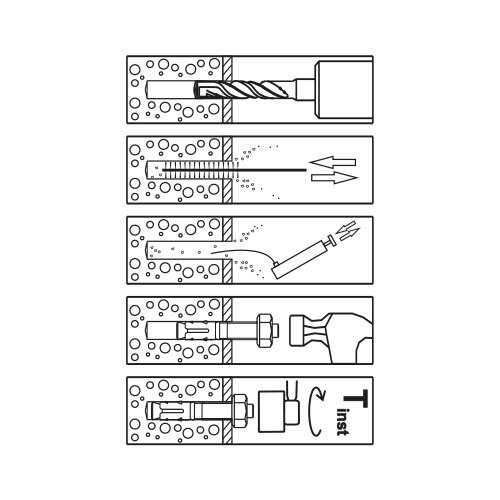

- For pre-, push-through and distance installations
- Seismic approval category C2 (M10-M16)
Note: Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.
-
Properties
- Stainless steel, A4
- HCR (1.4529) available on demand
- Approval for concrete, Option 1
- Fire restistance classes F30, F60, F90, F120
-
Benefits
- Completely new design
- M10 and M12 with 2 different anchorage depths
M10: 40 mm and 60 mm
M12: 50 mm and 70 mm - Colored setting depth marking on the thread
- Anchor length letter code marked on the bolt head
- Installation also in thinner concrete than today with M8 and M10
M8: 80 mm vs. 100 mm
M10: 100 mm vs. 120 mm - Installation torque achieved with 30 – 50% fewer revolutions
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters

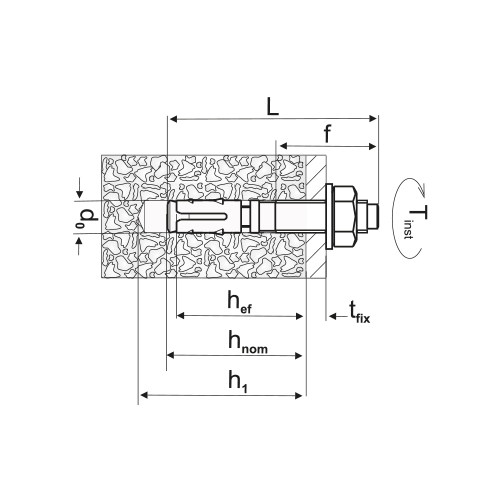

| Orderidentifier | Article Number | ø mm | Length mm | Clamping thickness B ≥ mm | Hole depth t ≤ mm | Unit | Availability | * Price / 100 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| BA-E Plus 8/23/10 Through Bolt | 9650005310 | 8.0 | 75.0 | 23.0 | 47.0 | Stainless Steel | 100 | |||
| BA-E Plus 8/43/30 Through Bolt | 9650005312 | 8.0 | 95.0 | 43.0 | 47.0 | Stainless Steel | 100 | |||
| BA-E Plus 8/63/50 Through Bolt | 9650005314 | 8.0 | 115.0 | 63.0 | 47.0 | Stainless Steel | 100 | |||
| BA-E Plus 8/98/85 Through Bolt | 9650005316 | 8.0 | 150.0 | 98.0 | 47.0 | Stainless Steel | 100 | |||
| BA-E Plus-10/10/- Through Bolt | 9650005323 | 10.0 | 72.0 | 10.0 | 55.0 | Stainless Steel | 100 | |||
| BA-E Plus-10/30/10 Through Bolt | 9650005325 | 10.0 | 92.0 | 30.0 | 55.0 | Stainless Steel | 100 | |||
| BA-E Plus-10/40/20 Through Bolt | 9650005326 | 10.0 | 102.0 | 40.0 | 55.0 | Stainless Steel | 100 | |||
| BA-E Plus-10/50/30 Through Bolt | 9650005327 | 10.0 | 112.0 | 50.0 | 55.0 | Stainless Steel | 100 | |||
| BA-E Plus-10/70/50 Through Bolt | 9650005329 | 10.0 | 132.0 | 70.0 | 55.0 | Stainless Steel | 100 | |||
| BA-E Plus-10/100/80 Through Bolt | 9650005331 | 10.0 | 162.0 | 100.0 | 55.0 | Stainless Steel | 100 | |||
| BA-E Plus-12/10/- Through Bolt | 9650005338 | 12.0 | 88.0 | 10.0 | 70.0 | Stainless Steel | 100 | |||
| BA-E Plus-12/25/5 Through Bolt | 9650005340 | 12.0 | 103.0 | 25.0 | 70.0 | Stainless Steel | 100 | |||
| BA-E Plus-12/40/20 Through Bolt | 9650005342 | 12.0 | 118.0 | 40.0 | 70.0 | Stainless Steel | 100 | |||
| BA-E Plus-12/50/30 Through Bolt | 9650005343 | 12.0 | 128.0 | 50.0 | 70.0 | Stainless Steel | 100 | |||
| BA-E Plus-12/70/50 Through Bolt | 9650005345 | 12.0 | 148.0 | 70.0 | 70.0 | Stainless Steel | 100 | |||
| BA-E Plus-12/85/65 Through Bolt | 9650005346 | 12.0 | 163.0 | 85.0 | 70.0 | Stainless Steel | 100 | |||
| BA-E Plus-12/100/80 Through Bolt | 9650005347 | 12.0 | 178.0 | 100.0 | 70.0 | Stainless Steel | 100 | |||
| BA-E Plus-16/5 Through Bolt | 9650005357 | 16.0 | 123.0 | 5.0 | 110.0 | Stainless Steel | 100 | |||
| BA-E Plus-16/20 Through Bolt | 9650005359 | 16.0 | 138.0 | 20.0 | 110.0 | Stainless Steel | 100 | |||
| BA-E Plus-16/50 Through Bolt | 9650005362 | 16.0 | 168.0 | 50.0 | 110.0 | Stainless Steel | 100 | |||
| BA-E Plus-16/60 Through Bolt | 9650005363 | 16.0 | 178.0 | 60.0 | 110.0 | Stainless Steel | 100 | |||
