Another big PLUS for EJOT concrete screws!

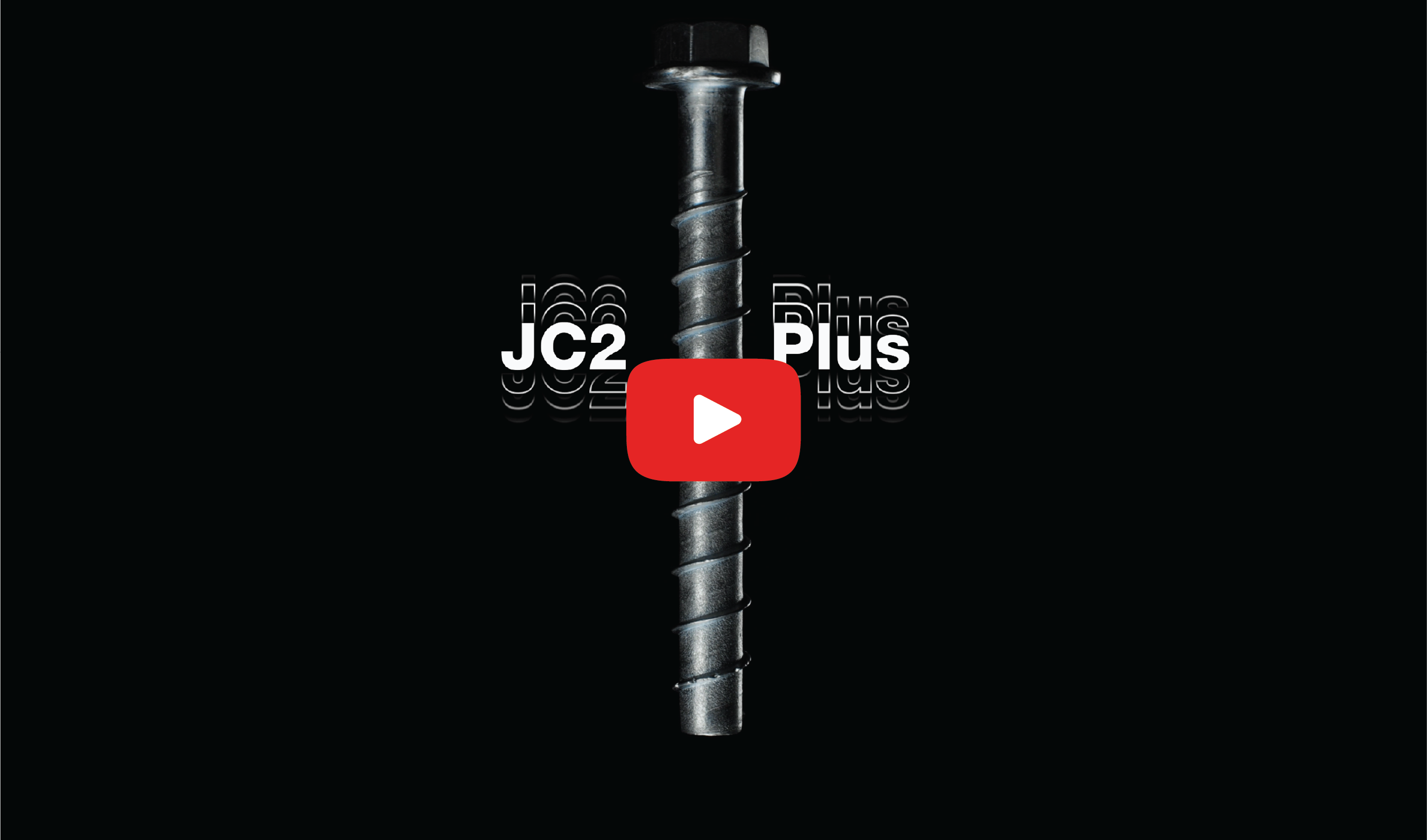

The ETA-approved JC2 Plus - size 14 concrete screw - is now also DIBt-approved for reusability along with an easy-to-use checking gauge. These screws are engineered to deliver high performance for very heavy loads, typically when attaching formwork supports.
Developed in Finland, this variant of the JC2 Plus 14 has a 24mm dia head and withstands high loads even at relatively small spacings and edge distances, whilst the CG Checking Gauge allows installers to easily determine the screw’s reusability for temporary bracing applications such as concrete mouldings.

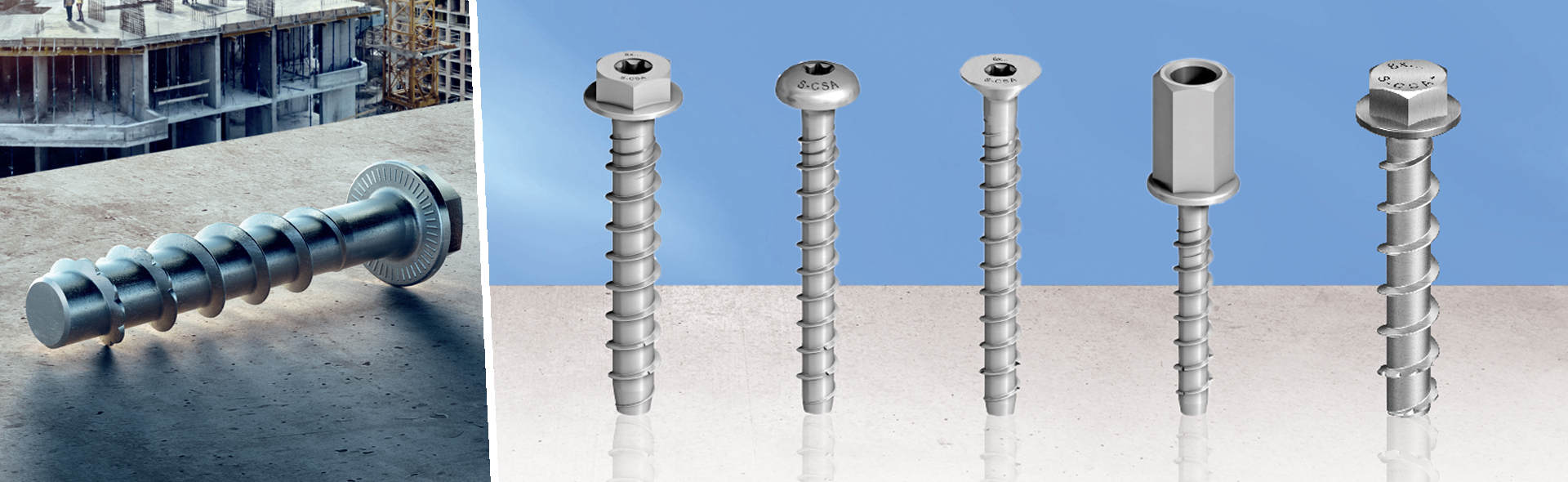

JC2 Plus fasteners are part of a range of ETA approved concrete screws developed by EJOT to offer superior performance in-situ along with hassle-free installation: The JC2-KB features a hex head with flange, the JC2-FR is a masonry screw with pan head and hexagon socket and the JC2- ST has a countersunk head with T-drive. These three fastener types are multi-purpose for attaching many different types of metal fixtures. They are complemented by the JC2-IT, which features a hex head with combined internal thread M8/M10 specifically for installing pipe brackets and profile rails.
Developed in Finland, this variant of the JC2 Plus 14 has a 24mm dia head and withstands high loads even at relatively small spacings and edge distances, whilst the CG Checking Gauge allows installers to easily determine the screw’s reusability for temporary bracing applications such as concrete mouldings.
JC2 Plus fasteners are part of a range of ETA approved concrete screws developed by EJOT to offer superior performance in-situ along with hassle-free installation: The JC2-KB features a hex head with flange, the JC2-FR is a masonry screw with pan head and hexagon socket and the JC2- ST has a countersunk head with T-drive. These three fastener types are multi-purpose for attaching many different types of metal fixtures. They are complemented by the JC2-IT, which features a hex head with combined internal thread M8/M10 specifically for installing pipe brackets and profile rails.

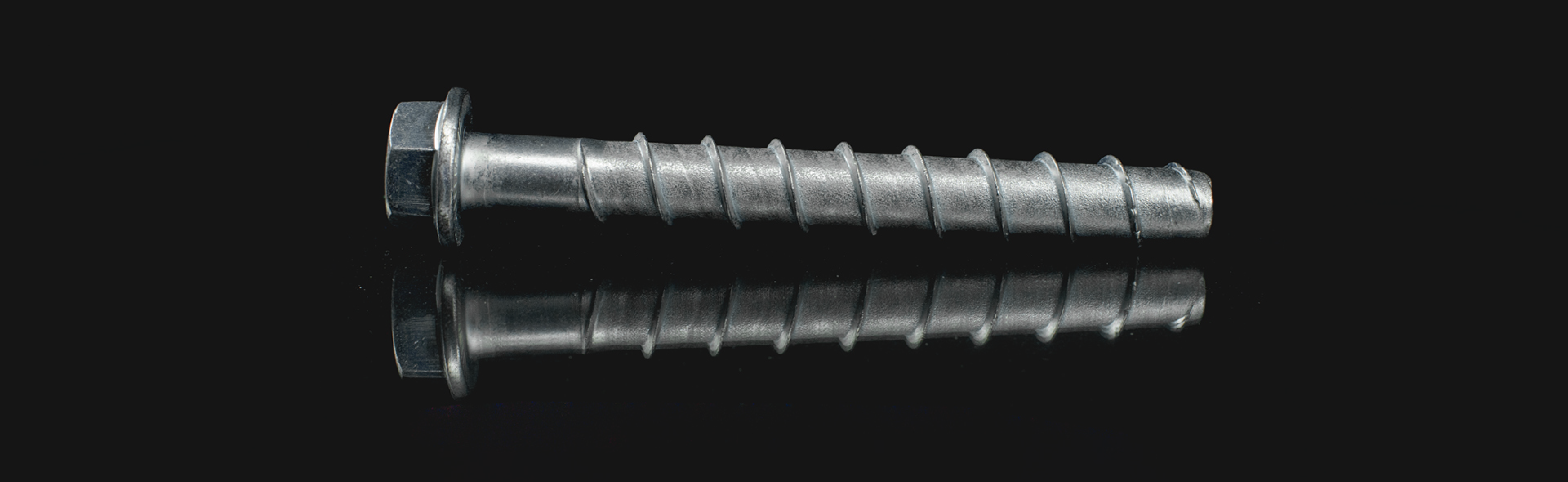

Features of the JC2 Plus
- Carbon steel, Galvanized zinc-plated
- Two approved setting depths
- ETA: Option 1 Cracked and non-cracked concrete
- High load capacity
- Optimized thread design for improved cutting performance
- Optimized top shape facilitates installation
- Hexagon head
- Removeable and reusable
- Thread size: M8, M10, M14
- The JC2 range contains M6 options
