High-strength fastening in to super-lightweight materials

Weight reduction is a universal design imperative. This has created a demand for fastening solutions that allow materials such as foams and honeycombs to be used with greater flexibility, more extensively and with seamless integration.



EJOT TSSD®  for honeycomb webs and composite panels

The EJOT TSSD® product range is a rapid and outstandingly strong thermal adhesive fastening system. It is designed to offer significant assembly time and performance advantages when used with a wide range of lightweight honeycomb and composite materials across many industry sectors.

Launched in the UK at the Automechanika exhibition in Birmingham in 2017, the TSSD® system is game-changing technology that delivers key benefits that include:
  • A lightweight bonding boss offering outstanding strength and versatility
  • Variants suited to many applications
  • Rapid fixing process requires no pre-drilling or other surface preparation
  • Can be automated for repeatability to customer specification
  • Pre-drilling is not required

Learn more about TSSD®



EJOT EPPsys® range for foams and EPP

EJOT’s EPPsys range is designed specifically for use in foams - especially expanded polypropylene (EPP) – and similar lightweight materials. Such materials are used extensively in the automotive and aerospace sectors but the design flexibility provided by each product opens infinite possibilities. Advantages include:
  • High strength to weight ratios
  • Durability and application versatility
  • Improved assembly efficiency - whether manual, semi-automated or automated assembly
  • Pre-drilling is not required
  • Recyclability

See below for key products from the EJOT EPPsys® range:


Contact our Team

If you’re involved with higher volume design engineering and would like a solutions-based conversation, then call or email our team.


Get in touch

TSSD - 640 x 377.png

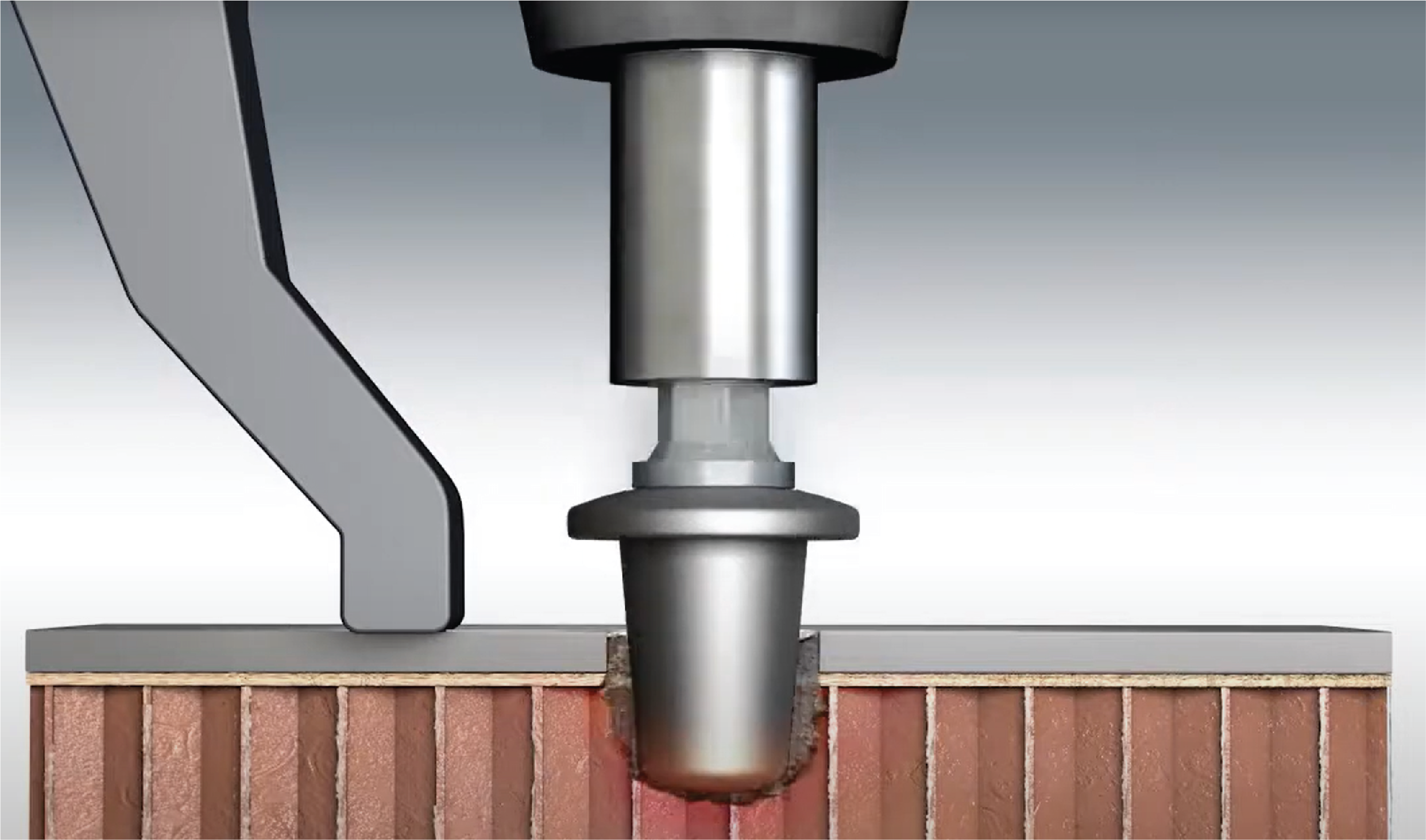

EPPsys TSSD

Secure fastening solution for honeycomb and foam materials, using a thermal friction adhesive bonding process. Plus, it is ideally suited for tolerance independent assembly, because no pilot hole is necessary.

  • Fastening element and process specifically for sandwich elements
  • Broad application range
  • Especially suitable for honeycomb structures
  • High transmittable tensile forces
  • No corrosion
  • Can be used as a screw boss or as a direct fastening element

More information


Watch Product Animation

RSD - 640 x 377.png

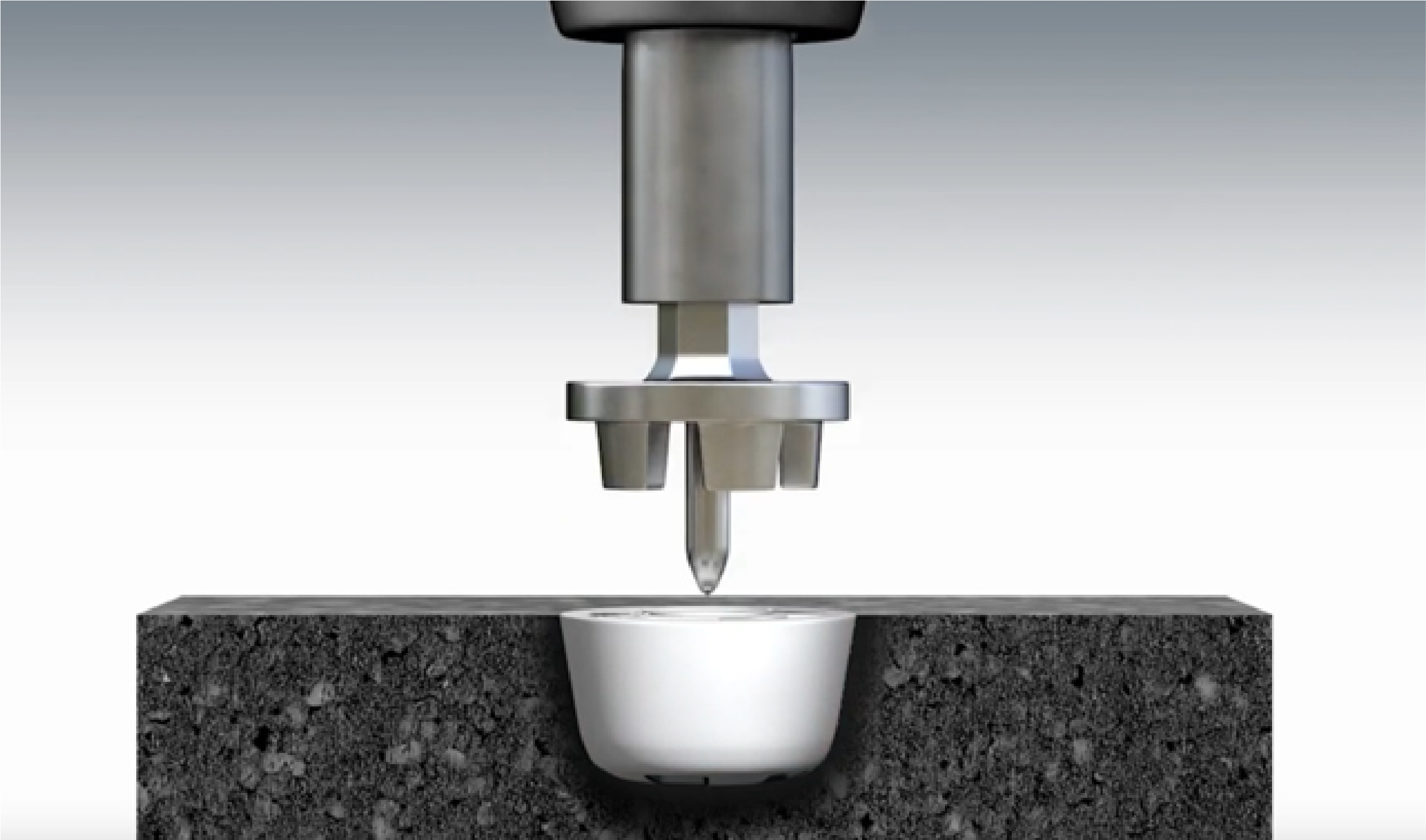

EPPsys® RSD

Installed by friction welding in to EPP foam, embedding the fastening element. Its use in EPP foams is an exclusive EJOT innovation.

  • No pilot hole – suites almost all foam densities
  • Process-reliable attachment point in EPP foam
  • High torque levels and pull-out loads
  • Independent of any component tolerances
  • Significant weight savings

More information


Watch Product Animation

D - 640 x 377.png

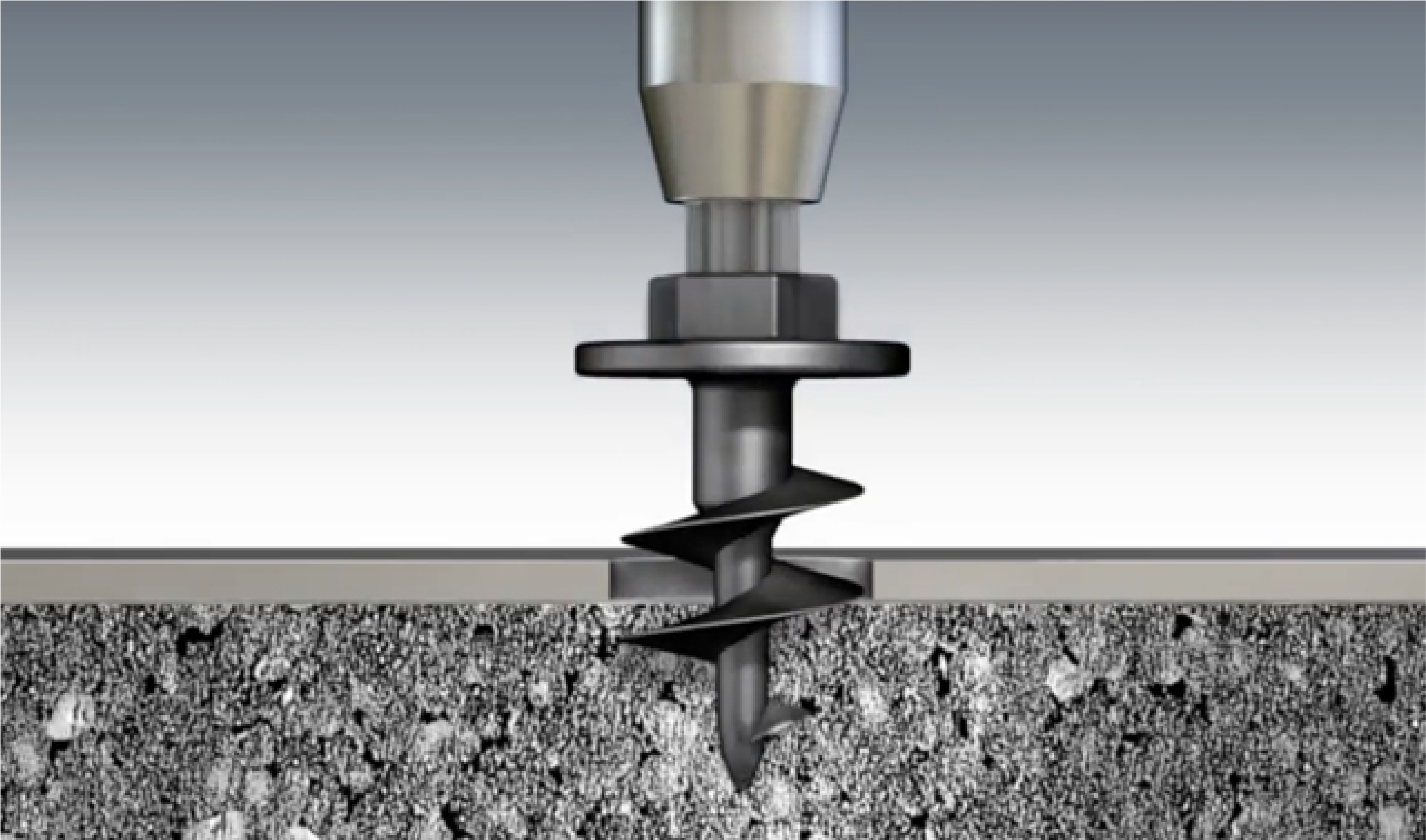

EPPsys® D

 Direct assembly into foamed products for cost savings and greater design freedom. Optimised for EPP but is also effective with other foams.

  • No pilot hole - no overlap issues
  • Margin between installation & stripping torque
  • High axial load capacity when fastened
  • Significant weight savings
  • All forms of assembly processes possible

More information


Watch Product Animation

DR - 640 x 377.png

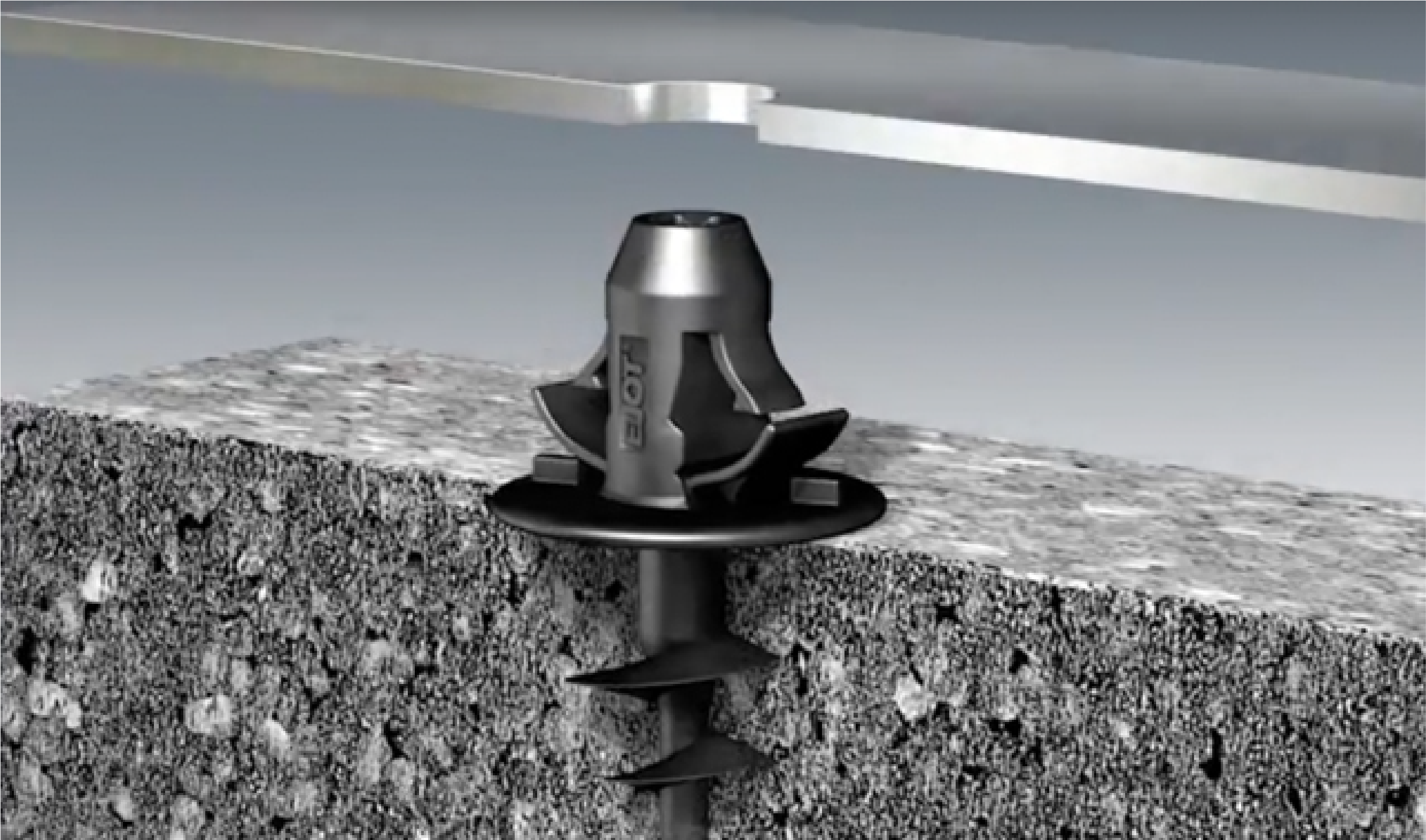

EPPsys® DR

EPPsys D variant snap-fit alternative for component attachment. Two engagement hooks enable the easy attachment of thin-walled components.

  • Easy fastening to thin-walled components
  • Easy snap-fitting of mounted parts
  • Large clamping thickness range
  • Axial tolerance compensation
  • Radial tolerance compensation

More information


Watch Product Animation
