Install the fastener, adjust the tubewasher.
How clever is that?
EJOT UK has developed a mechanical fastening combination that saves time and money when installing tapered flat roofing. And the system can be deployed in all weathers, 12 months a year!

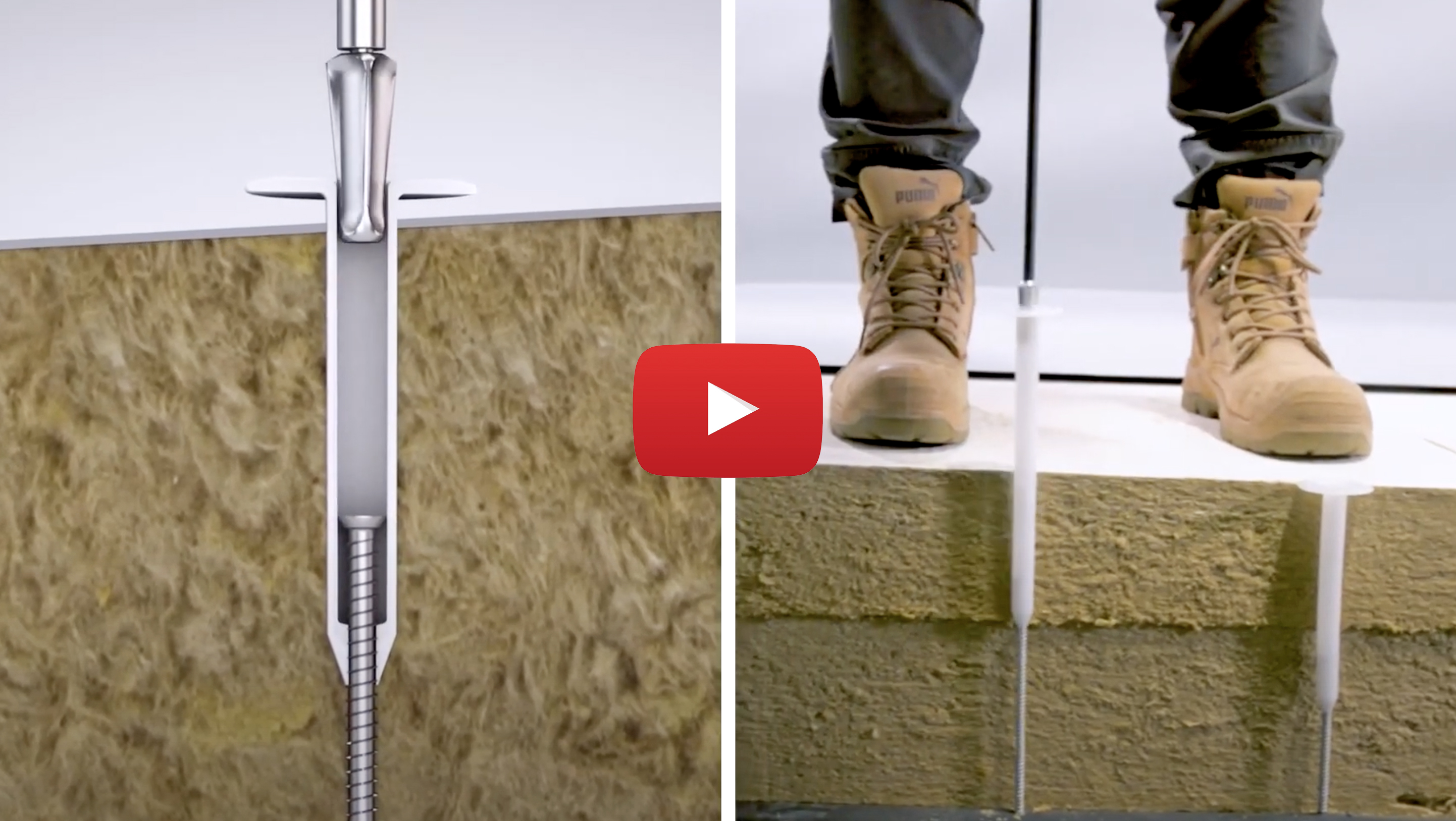

The JBS-R/EcoTek combination brings together a high-performing concrete screw (JBS-R 7.5) with a high-quality telescopic tubewasher (EcoTek) to provide a fixing solution that is adjustable to fit the required depth of insulation. It is universally suitable too, providing a solution for mineral fibre, EPS, XPS and PIR tapered insulation.
This makes the fastener suitable for any insulation depth of between 70mm and 500mm, using fewer fastener / washer combinations than any other current mechanical fixing approach. This can easily reduce fastener use for a slope insulation of 120 to 260 millimetres by as much as 25%, subject to the application, a site survey and pull out test.

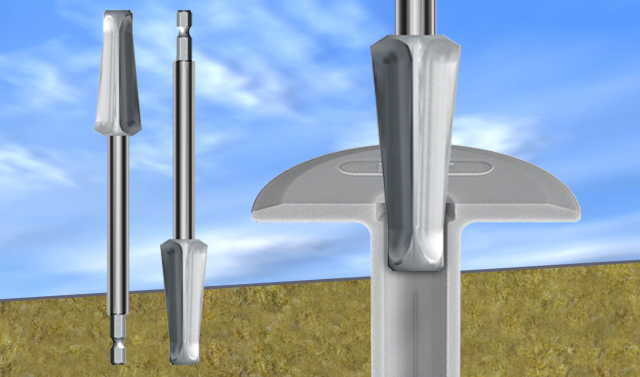

Installation is easy as only one embedment depth is needed whatever the insulation thickness. Adjustability is achieved thanks to the innovative way that the EcoTek tubewasher is driven into place using a custom tool with the fastener already in place. Where the insulation is especially deep, installers can simply use EJOT’s flanged A-cone and extension – this helps to eliminate the awkwardness of drilling deep using standard SDS drills.

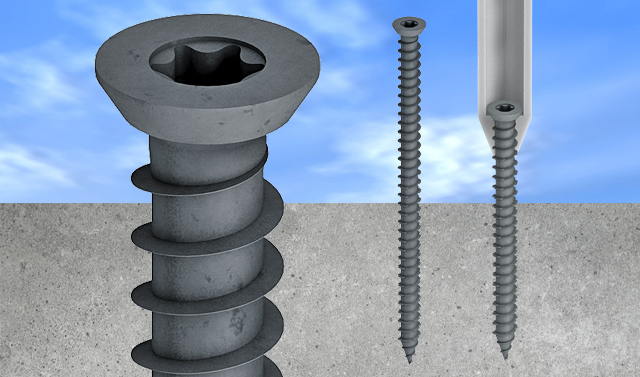

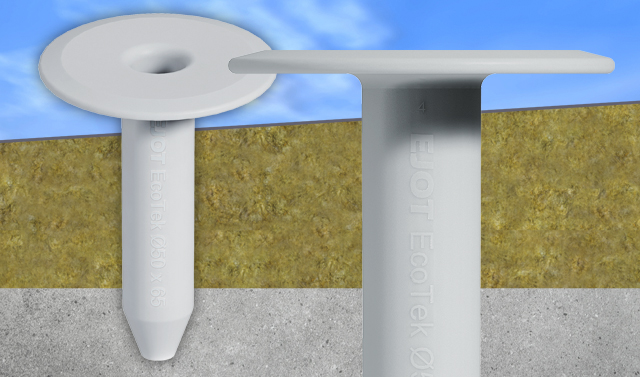

Long term performance is assured when using the JBS-R/EcoTek fastening system given the quality materials used to manufacture both fastener elements. The JBS-R fastener is manufactured from case hardened steel and the EcoTek tubewasher is formed from high quality plastic to provide a lasting solution.
Benefits of the JBS-R/EcoTek combination
- Easier installation - one combination driven to just one depth
- Tubewasher prevents heat loss - assists thermal retention
- Simpler ordering - no need to source a variety of screws and stress plates
- Fewer parts - means less confusion and an inventory without waste
- Straightforward application - saves time and money with better results
- Easy ordering - everything you need in one place
'A' Cone Plus Flange & Extension bar
- Cores and drills to one set depth
- Drill concrete from a standing position
- Perfectly suited to thicker insulation installations
- Drive SDS Plus
- View 'A' Cone Plus Flange
- View Extension Bar
More time-saving innovations from EJOT, designed with flat-roofers in mind!
EJOT UK has developed three innovative bright ideas, all designed to make installing flat roofing more efficient and effective - saving time, money, headaches... and back aches!
