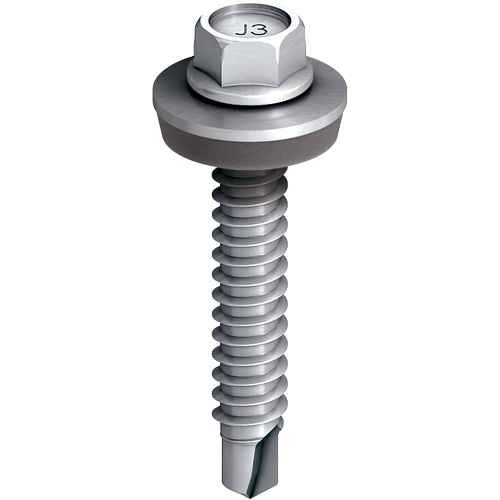

EJOT® JT3 3 6.3

Specification

  • Applications

    • Suitable for isntalling helping hand brackets and metal sections
  • Properties

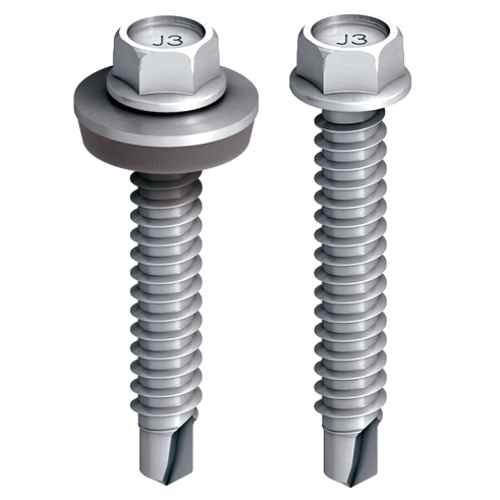

    • Available unwashered
    • Can be used with an S16 washer
  • Technical specifications

    • Drive: 8mm clip hex one piece socket
    • Steel sections from 1.2 to 3.0mm in thickness
    • Material: A2 Austenitic Stainless Steel fastener with Carbon steel drill point

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm Ø Sealing Washer mm ø mm Clamp thickness mm Unit Availability * Price / 100
    JT3-3-6.3 x 38 9900108612 38.0 0 - none 6.3 1.2 - 22.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    38.0
    Ø Sealing Washer mm
    0 - none
    ø
    6.3
    Clamp thickness
    1.2 - 22.0
    Maximum drilling capacity
    3.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3-3-6.3 x 38
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 3 6.3 x 38 S16 3599611331 38.0 16 6.3 1.2 - 20.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    38.0
    Ø Sealing Washer mm
    16
    ø
    6.3
    Clamp thickness
    1.2 - 20.0
    Maximum drilling capacity
    3.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 3 6.3 x 38 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 3 6.3 x 50 7380582301 50.0 0 - none 6.3 1.2 - 34.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    50.0
    Ø Sealing Washer mm
    0 - none
    ø
    6.3
    Clamp thickness
    1.2 - 34.0
    Maximum drilling capacity
    3.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 3 6.3 x 50
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 3 6.3 x 50 S16 3599811331 50.0 16 6.3 1.2 - 32.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    50.0
    Ø Sealing Washer mm
    16
    ø
    6.3
    Clamp thickness
    1.2 - 32.0
    Maximum drilling capacity
    3.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 3 6.3 x 50 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
