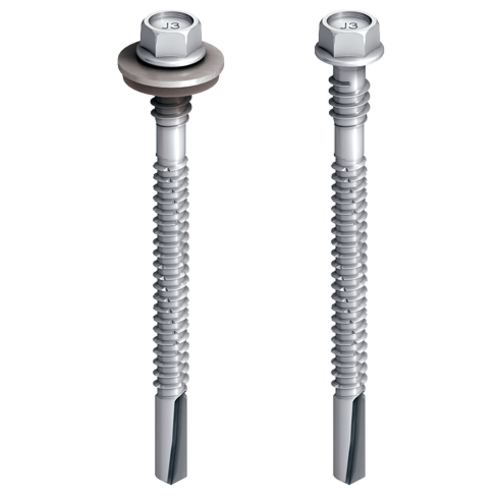

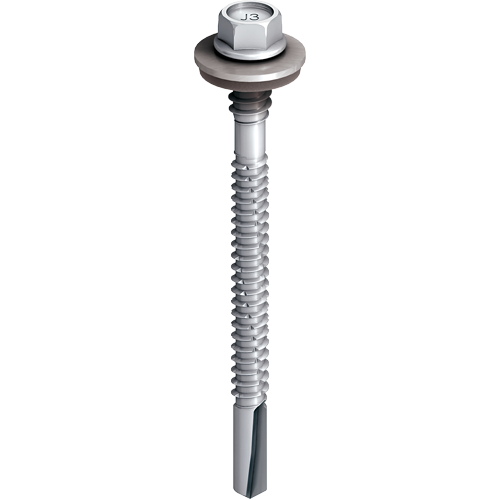

EJOT® JT3 D12H 5.5/6.3

Specification

  • Applications

    • Steel Profiled insulated sandwich panels to hot rolled steel sections
  • Properties

    • A2 Austenitic Stainless Steel fastener with Carbon steel drill point
    • Available unwashered
    • Can be used in conjunction with the S16 and S19 stainless steel/ EPDM and A29 aluminium vulcanised sealing washers
    • S16 washered variants can be used in connection with the EJOT trapezoidal and sinusoidal storm washers
  • Technical specifications

    • Drive: 8mm clip hex one piece socket
    • Steel sections from 4.0 to 12.0mm in thickness
    • 5.5mm diameter with 6.3mm high thread
    • Steel-faced insulated sandwich panels

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm Ø Sealing Washer mm ø mm Clamp thickness mm Unit Availability * Price / 100
    JT3 D12H 5.5/6.3 x 75 7380501309 75.0 0 - none 5.5 46.0 - 54.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    75.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    46.0 - 54.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 75
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6.3 x 75 S16 3557511312 75.0 16 5.5 41.0 - 48.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    75.0
    Ø Sealing Washer mm
    16
    ø
    5.5
    Clamp thickness
    41.0 - 48.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 75 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6.3 x 75 S19 9900030138 75.0 19 5.5 46.0 - 50.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    75.0
    Ø Sealing Washer mm
    19
    ø
    5.5
    Clamp thickness
    46.0 - 50.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 75 S19
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6.3 x 75 A29 9900030566 75.0 29 5.5 46.0 - 49.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    75.0
    Ø Sealing Washer mm
    29
    ø
    5.5
    Clamp thickness
    46.0 - 49.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 75 A29
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6.3 x 95 7380455309 95.0 0 - none 5.5 58.0 - 72.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    95.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    58.0 - 72.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 95
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H-5.5/6.3 x 95 S16 3554911311 95.0 16 5.5 51.0 - 68.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    95.0
    Ø Sealing Washer mm
    16
    ø
    5.5
    Clamp thickness
    51.0 - 68.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H-5.5/6.3 x 95 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6/3 x 95 S19 3554966311 95.0 19 5.5 51.0 - 68.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    95.0
    Ø Sealing Washer mm
    19
    ø
    5.5
    Clamp thickness
    51.0 - 68.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6/3 x 95 S19
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6.3 x 95 A29 9900030289 95.0 29 5.5 58.0 - 69.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    95.0
    Ø Sealing Washer mm
    29
    ø
    5.5
    Clamp thickness
    58.0 - 69.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 95 A29
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6.3 x 115 7380456309 115.0 0 - none 5.5 68.0 - 92.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    115.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    68.0 - 92.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 115
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 D12H 5.5/6.3 x 115 S16 3555211311 115.0 16 5.5 61.0 - 88.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    115.0
    Ø Sealing Washer mm
    16
    ø
    5.5
    Clamp thickness
    61.0 - 88.0
    Maximum drilling capacity
    12.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT3 D12H 5.5/6.3 x 115 S16
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
