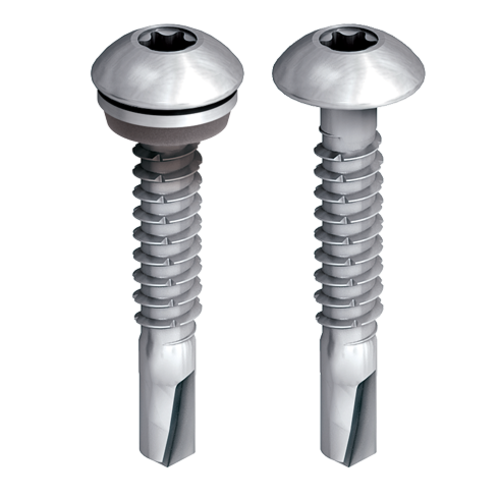

EJOT® JT3 FR 6 5.5

Specification

  • Applications

    • Profiled steel and aluminium roofing and cladding sheets to medium steel sections
  • Properties

    • Available unwashered
    • Low profile Dome head
    • Available powder coated
    • For steel sections from 1.2 to 6mm in thickness
    • Can be used in conjunction with S12 stainless / EPDM vulcanised sealing washers
  • Technical specifications

    • Drive: TORX® T25
    • Material: A2 Austenitic Stainless Steel fastener with Carbon steel drill point

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Select system

  • RAL
    Select color
    • RAL7016
    • RAL9007

Selected filters

    Orderidentifier Article Number Ø Sealing Washer mm ø mm Head Colour Clamp thickness mm Unit Availability * Price / 100
    JT3 FR 6 5.5 x 25 S12 3592269368 12 5.5 7.0 - 0.0 100 Please login to check the price Please login to check the price

    Specifications

    Ø Sealing Washer mm
    12
    ø
    5.5
    Head Colour
    Clamp thickness
    7.0 - 0.0
    Maximum drilling capacity
    6.0
    Drive
    TORX T25
    Availability
    Orderidentifier
    JT3 FR 6 5.5 x 25 S12
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    PCC JT3 FR 6 5.5 x 25 S12 Anthracite Grey RAL7016 3390469025 12 5.5 7.0 - 0.0 100 Please login to check the price Please login to check the price

    Specifications

    Ø Sealing Washer mm
    12
    ø
    5.5
    Head Colour
    RAL7016
    Clamp thickness
    7.0 - 0.0
    Maximum drilling capacity
    6.0
    Drive
    TORX T25
    Availability
    Orderidentifier
    PCC JT3 FR 6 5.5 x 25 S12 Anthracite Grey RAL7016
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    PCC JT3 FR 6 5.5 x 25 S12 Grey Aluminium RAL9007 3390469220 12 5.5 7.0 - 0.0 100 Please login to check the price Please login to check the price

    Specifications

    Ø Sealing Washer mm
    12
    ø
    5.5
    Head Colour
    RAL9007
    Clamp thickness
    7.0 - 0.0
    Maximum drilling capacity
    6.0
    Drive
    TORX T25
    Availability
    Orderidentifier
    PCC JT3 FR 6 5.5 x 25 S12 Grey Aluminium RAL9007
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 FR 6 5.5 x 35 S12 3592569368 12 5.5 17.0 - 0.0 100 Please login to check the price Please login to check the price

    Specifications

    Ø Sealing Washer mm
    12
    ø
    5.5
    Head Colour
    Clamp thickness
    17.0 - 0.0
    Maximum drilling capacity
    6.0
    Drive
    TORX T25
    Availability
    Orderidentifier
    JT3 FR 6 5.5 x 35 S12
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 FR 6 5.5 x 25 7384077301 0 - none 5.5 1.2 - 8.0 100 Please login to check the price Please login to check the price

    Specifications

    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Head Colour
    Clamp thickness
    1.2 - 8.0
    Maximum drilling capacity
    6.0
    Drive
    TORX T25
    Availability
    Orderidentifier
    JT3 FR 6 5.5 x 25
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT3 FR 6 5.5 x 35 7384101301 0 - none 5.5 1.2 - 18.0 100 Please login to check the price Please login to check the price

    Specifications

    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Head Colour
    Clamp thickness
    1.2 - 18.0
    Maximum drilling capacity
    6.0
    Drive
    TORX T25
    Availability
    Orderidentifier
    JT3 FR 6 5.5 x 35
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
