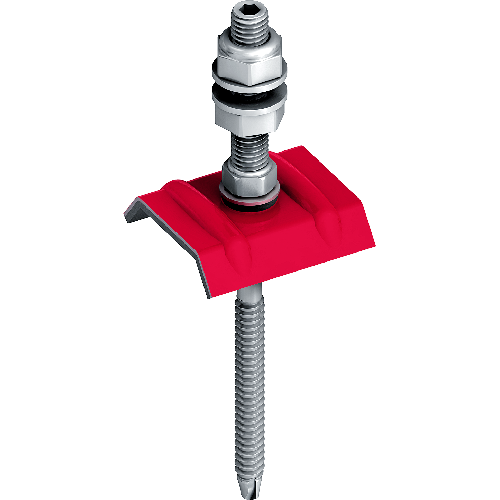

EJOT® JT3 SB 3 8.0xL E16 & ORKAN Storm Washer
Specification
-
Applications
- For fastening elevated solar and photovoltaic installations to
steel substructures 1.5 - 3 mm - Can also be used for steel substructure ≥ 3.0 mm if predrilled
- For high-strength steel substructures up to S450GD

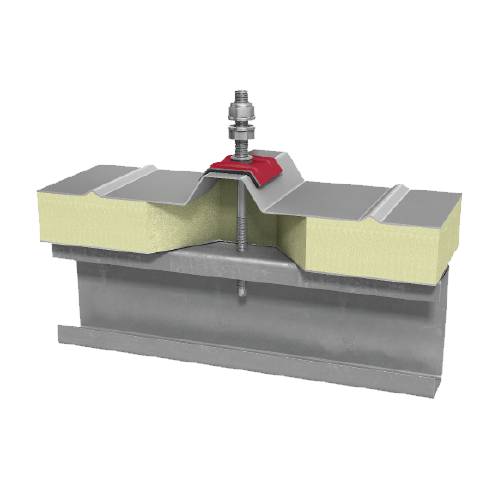

- Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels
- For fastening elevated solar and photovoltaic installations to
-
Properties
- A2 stainless steel with hardened steel drill point
- In set with sealing washer E16 + ORKAN storm washer
Benefits
- Quick retrofitting on existing installations
- Fastening without pre-drilling (substructure < 3 mm)
- Extremely safe fastening with direct load transfer into the substructure
- No additional holes in the roofing membrane
- Suitable for high-strength steels
- Consistent installation depth
- Use of proven sealing systems
- Durable seal due to solid attachment point
- Minimum installation and tool requirements
- Project-related initial sizing possible
-
Technical specifications
- Screw diameter: 8.0 mm
- A/F5 hexagon drive
- Installation rotation speed: max. 1300 1/min
Notice
The solar fastener components are tailored to your project. Further versions upon request
