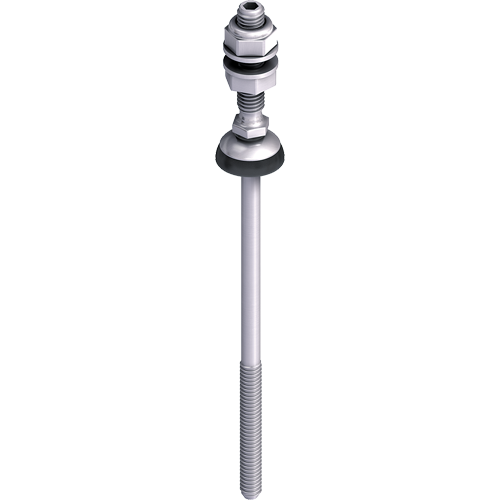

EJOT® JZ3 SB 8.0xL & FZD Fibre Cement Seal

Specification

  • Applications

    • For fixing solar installations to timber substructures
    • Suitable for sinusoidal profile sheets - Steel and Fibre cement
  • Properties

    • Quick retrofitting on existing roofs
    • No additional holes in the roof cladding
    • Use of proven sealing systems
    • No special installation tools necessary
    • Extremely safe fastening with direct embedment into the substructure
    • DIBt approved fastener
  • Technical specifications

    • For all technical specifications see download
    • For a pre-structural assessment download the questionnaire

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm ø mm Thread Unit Availability * Price / 100
    JZ3 SB 8.0 x 100/50 FZD 3131098905 100.0 8.0 M10x50 25 Please login to check the price Please login to check the price

    Specifications

    Length
    100.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Sinusoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 100/50 FZD
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 100/70 FZD 3131098907 100.0 8.0 M10x70 25 Please login to check the price Please login to check the price

    Specifications

    Length
    100.0
    ø
    8.0
    Thread
    M10x70
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Sinusoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 100/70 FZD
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 125/50 FZD 3131298905 125.0 8.0 M10x50 25 Please login to check the price Please login to check the price

    Specifications

    Length
    125.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Sinusoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 125/50 FZD
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 150/70 FZD 3131598907 150.0 8.0 M10x70 25 Please login to check the price Please login to check the price

    Specifications

    Length
    150.0
    ø
    8.0
    Thread
    M10x70
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Sinusoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 150/70 FZD
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 200/50 FZD 3132098905 200.0 8.0 M10x50 25 Please login to check the price Please login to check the price

    Specifications

    Length
    200.0
    ø
    8.0
    Thread
    M10x50
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Sinusoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 200/50 FZD
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 200/70 FZD 3132098907 200.0 8.0 M10x70 25 Please login to check the price Please login to check the price

    Specifications

    Length
    200.0
    ø
    8.0
    Thread
    M10x70
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Sinusoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 200/70 FZD
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
