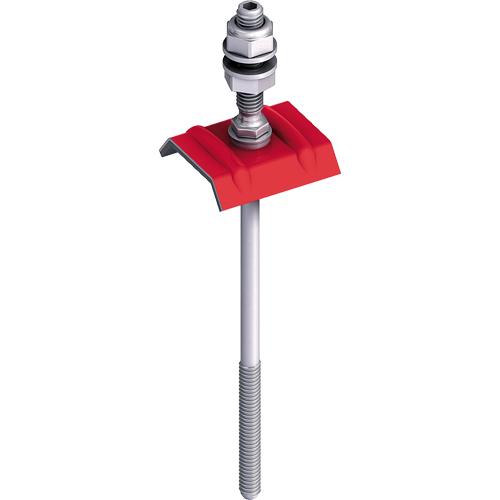

EJOT® JZ3 SB 8.0xL E16 & ORKAN Storm Washer

Specification

  • Applications

    • The dimensions of the profile sheet is required for the correct Storm washer
    • For fixing solar installations to steel substructures
    • Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels
    • STORM WASHER IS SOLD SEPARATELY
  • Advantages

    • Quick retrofitting on existing roofs
    • No additional holes in the roof cladding
    • Use of proven sealing systems
    • No special installation tools necessary
    • Extremely safe fastening with direct embedment into the substructure
    • DIBt approved fastener
  • Technical specifications

    • For all technical specifications see download
    • For a pre structural assessment download the questionnaire

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm ø mm Thread Lock nut Unit Availability * Price / 100
    JZ3 SB 8.0 x 100/70 E16 3131091907 100.0 8.0 M10x70 M10 lock nut 25 Please login to check the price Please login to check the price

    Specifications

    Length
    100.0
    ø
    8.0
    Thread
    M10x70
    Lock nut
    M10 lock nut
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 100/70 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 125/50 E16 3131291905 125.0 8.0 M10x50 M10 lock nut 25 Please login to check the price Please login to check the price

    Specifications

    Length
    125.0
    ø
    8.0
    Thread
    M10x50
    Lock nut
    M10 lock nut
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 125/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 125/70 E16 3131291907 125.0 8.0 M10x70 M10 lock nut 25 Please login to check the price Please login to check the price

    Specifications

    Length
    125.0
    ø
    8.0
    Thread
    M10x70
    Lock nut
    M10 lock nut
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 125/70 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 150/70 E16 3131591907 150.0 8.0 M10x70 M10 lock nut 25 Please login to check the price Please login to check the price

    Specifications

    Length
    150.0
    ø
    8.0
    Thread
    M10x70
    Lock nut
    M10 lock nut
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 150/70 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 200/50 E16 3132091905 200.0 8.0 M10x50 M10 lock nut 25 Please login to check the price Please login to check the price

    Specifications

    Length
    200.0
    ø
    8.0
    Thread
    M10x50
    Lock nut
    M10 lock nut
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 200/50 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
    JZ3 SB 8.0 x 200/70 E16 3132091907 200.0 8.0 M10x70 M10 lock nut 25 Please login to check the price Please login to check the price

    Specifications

    Length
    200.0
    ø
    8.0
    Thread
    M10x70
    Lock nut
    M10 lock nut
    Property Type (Solar)
    Commercial Agricultural
    Substrate Type (Solar)
    Steel ≥ 1.5mm
    Roof Type / Profile (Solar)
    Trapezoidal
    Availability
    Orderidentifier
    JZ3 SB 8.0 x 200/70 E16
    Unit
    25
    * Price / 100
    Please login to check the price Please login to check the price
