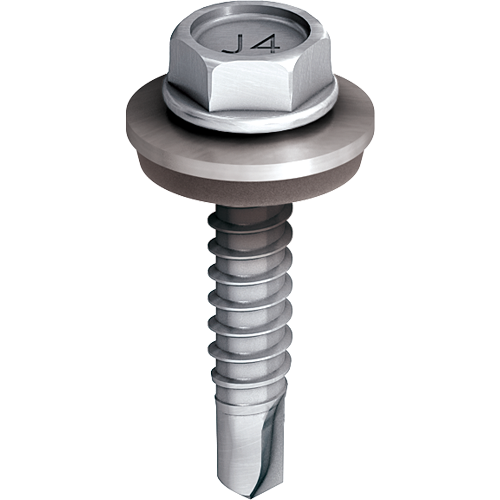

EJOT® JT4 4 4.8

Specification

Applications
- Especially suited for aluminium sheets, sections / helping hand brackets to aluminium 1.5mm - 4.0mm
Properties

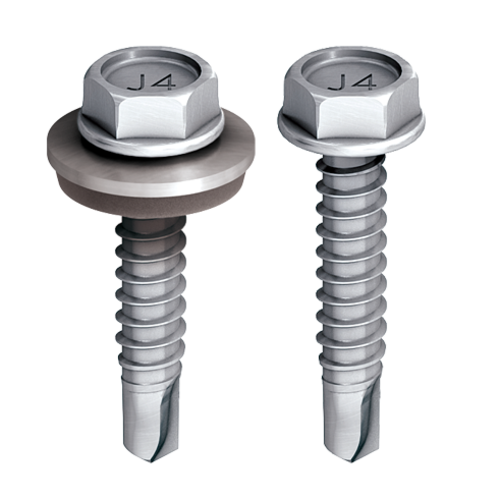

- Available unwashered
- Can be assembled with S14 stainless steel / EPDM vulcanised sealing washer
Technical specifications
- Drive: 8mm clip hex one piece socket
- Aluminium sections from 1.5 - 4.0mm in thickness
- Material: Fully A2 Austenitic Stainless Steel

Downloads

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices, please log in here.

Orderidentifier	Article Number	Length mm	Ø Sealing Washer mm	ø mm	Clamp thickness mm			Unit	Availability	* Price / 100
JT4 4 4.8 x 19	9900102995	19.0	0 - none	4.8	1.5 - 9.0	4.0	Hexagon 8mm AF	100
Specifications Length 19.0 Ø Sealing Washer mm 0 - none ø 4.8 Clamp thickness 1.5 - 9.0 Maximum drilling capacity 4.0 Drive Hexagon 8mm AF Availability Orderidentifier JT4 4 4.8 x 19 Unit 100 * Price / 100
