Your solar panels. Our fastening solution.
Fastening Solutions for Solar Energy Applications
Climate change is an ongoing and ever-present phenomenon. We must strive to reduce our demand on fossil fuels and lower our carbon dioxide emissions whilst transitioning to renewable energy sources. For us at EJOT, tackling climate change means helping to develop the most innovative solutions for sustainable building envelopes. This includes our extensive solar portfolio.
EJOT UK offers a comprehensive portfolio of fastening solutions for solar systems on a wide variety of roof types and substrates and open spaces. We provide the perfect solution for every requirement, delivering comprehensive guidance and developing individualised, customised products when necessary. We work with our customers to find the ideal fastening for their needs. EJOT excels in collaborative partnerships and maintaining open dialogue, this is one of our distinctive strengths.
Load transfer directly into the substructure
The EJOT Solar Fastener set with sealing washer and ORKAN storm washer is the first ETA-certified stainless steel fastening element for fixing photovoltaic installations to trapezoidal profiles and sandwich panel roofs. For applications on corrugated fibre cement sheets, we recommend the set with an FDZ fibre cement seal. The main benefit is that all tensile and compressive forces are transferred directly into the substructure.The bottom part of the fastener with drill point is fixed directly into the substructure in a single operation without any pre-drilling. The top part has a welded-on set screw to hold the mounting rails for the solar installation. The range is supplemented by an assortment of sealing elements and adapters.
Benefits:
- Quick retrofitting on existing installations
- Extremely safe fastening with direct load transfer into the substructure
- No additional holes in the roofing membrane
- Consistent installation depth
- Use of proven sealing systems
- ETA-22/0762-certified (only Solar Fastener set with sealing washer + ORKAN storm washer)
- Durable seal due to solid attachment point
- Minimum installation and tool requirements
- Project-related initial sizing possible

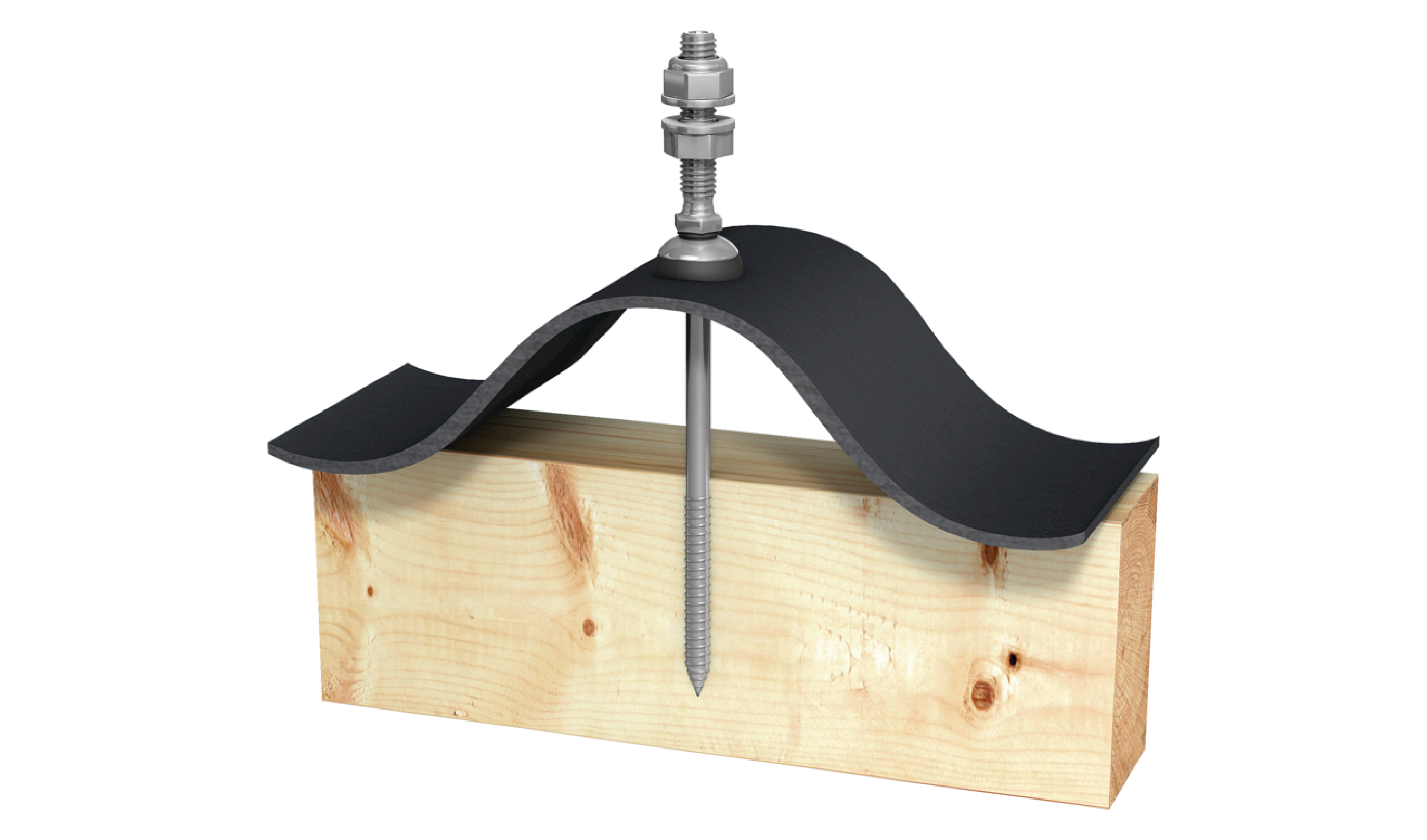

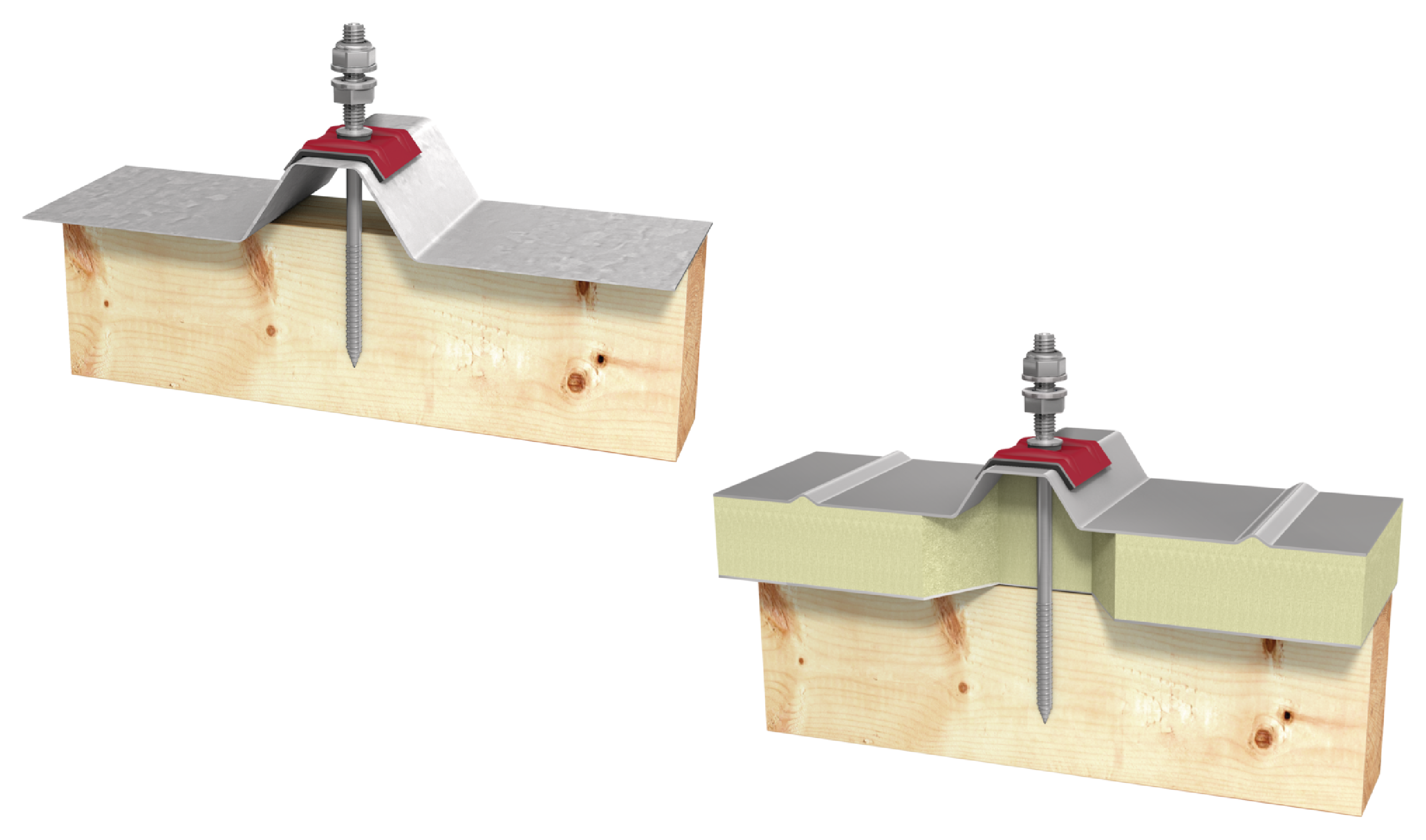

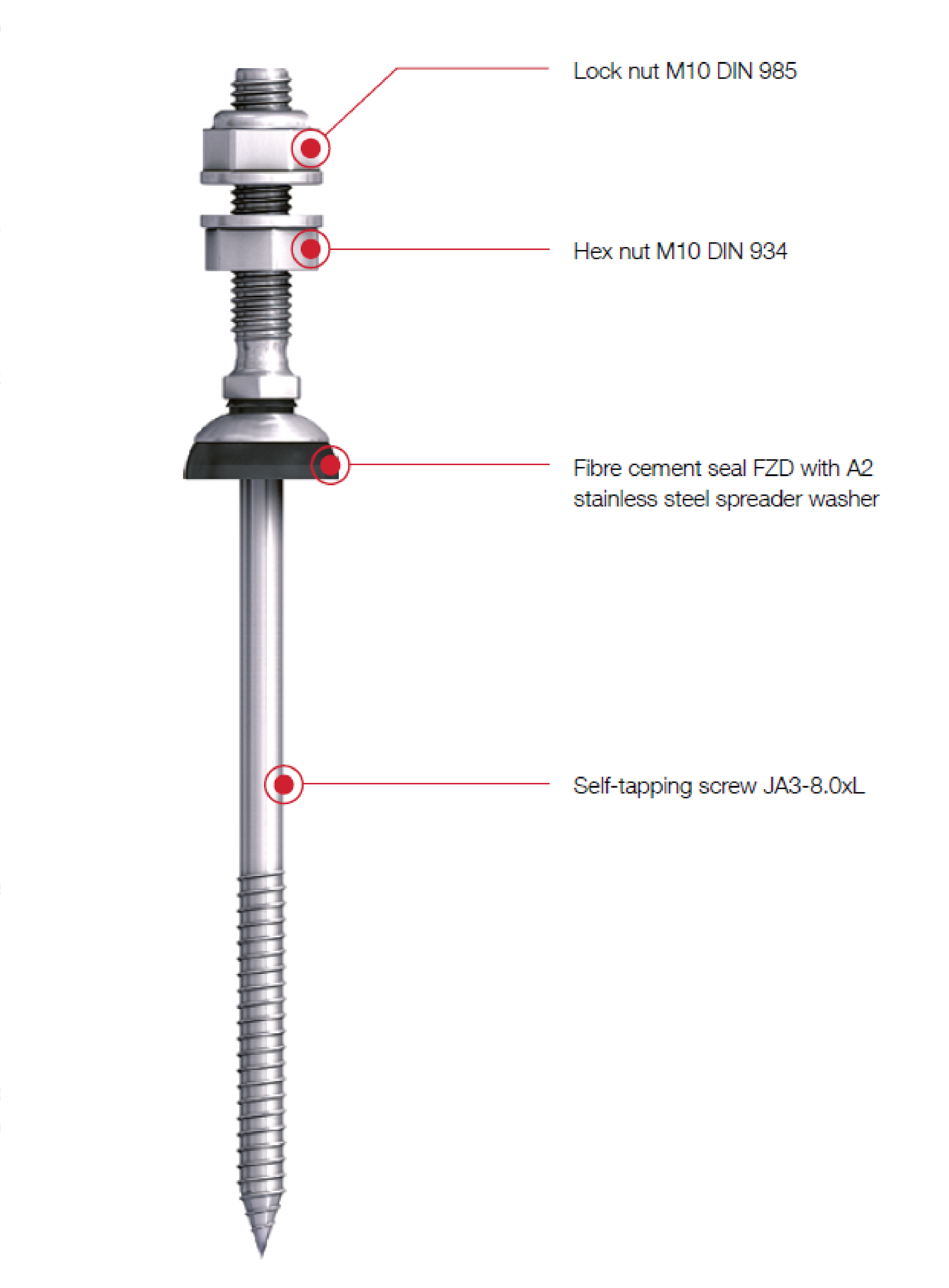

JA3 SB 8.0xL
A self-tapping fastener for timber applications made of A2 stainless steel.

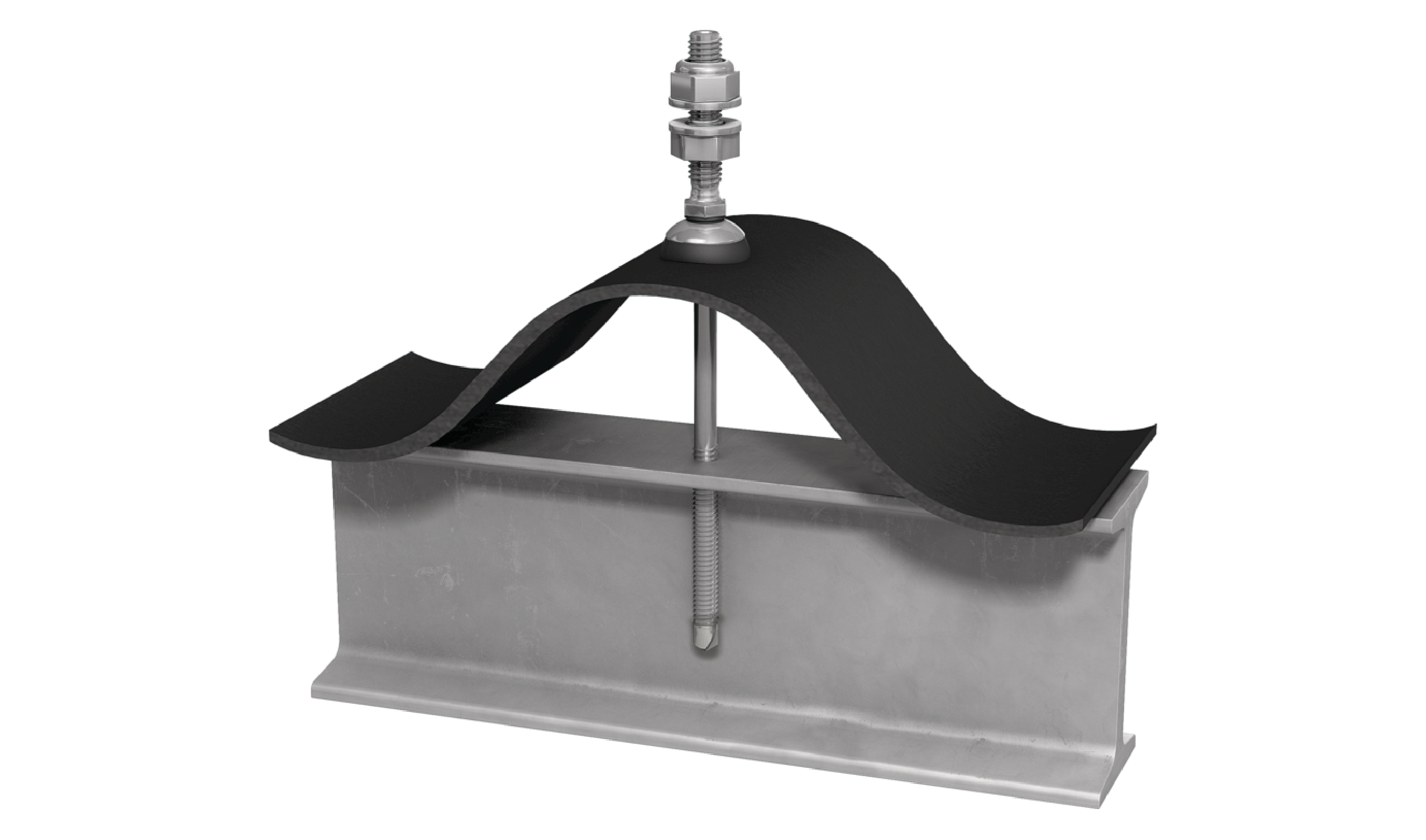

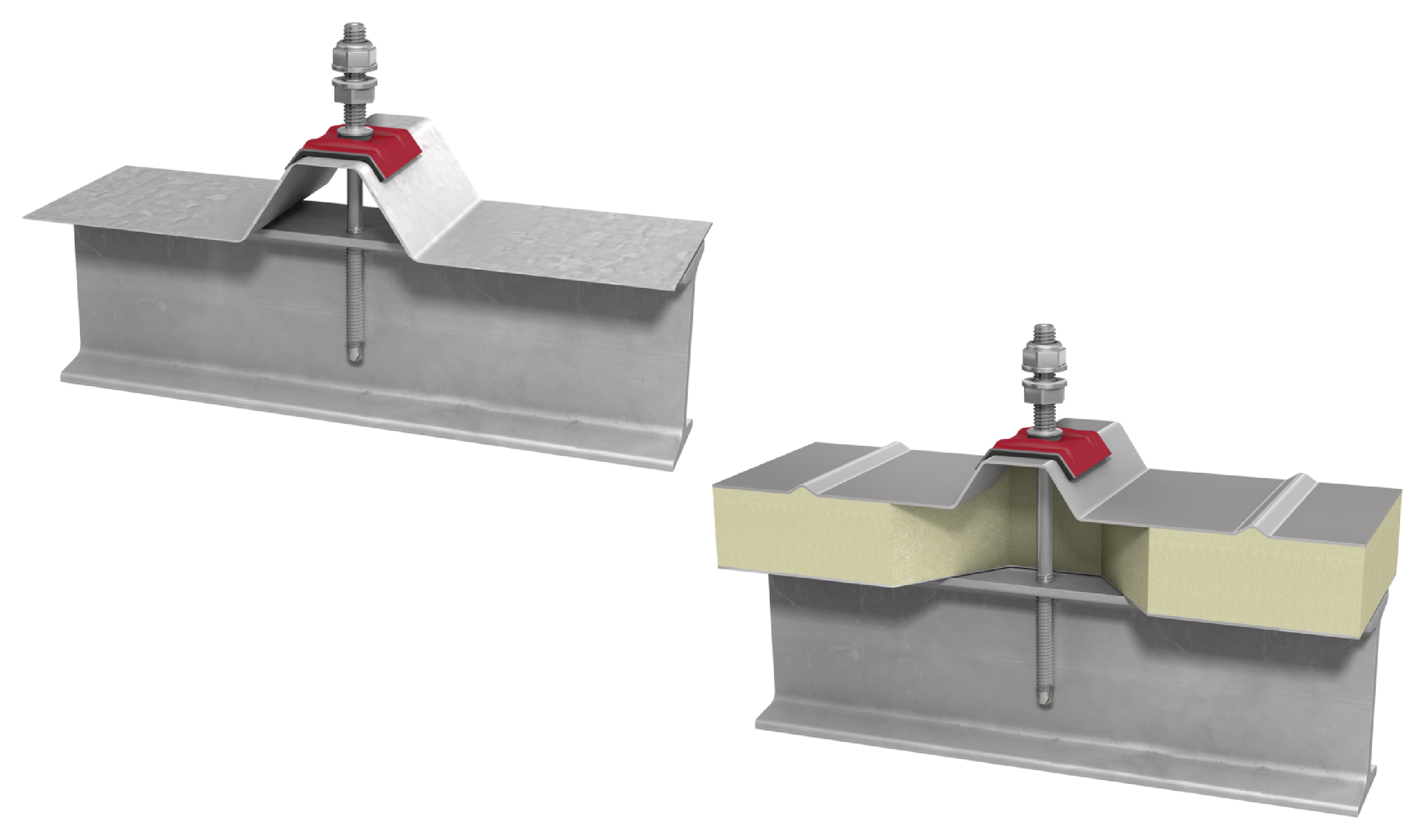

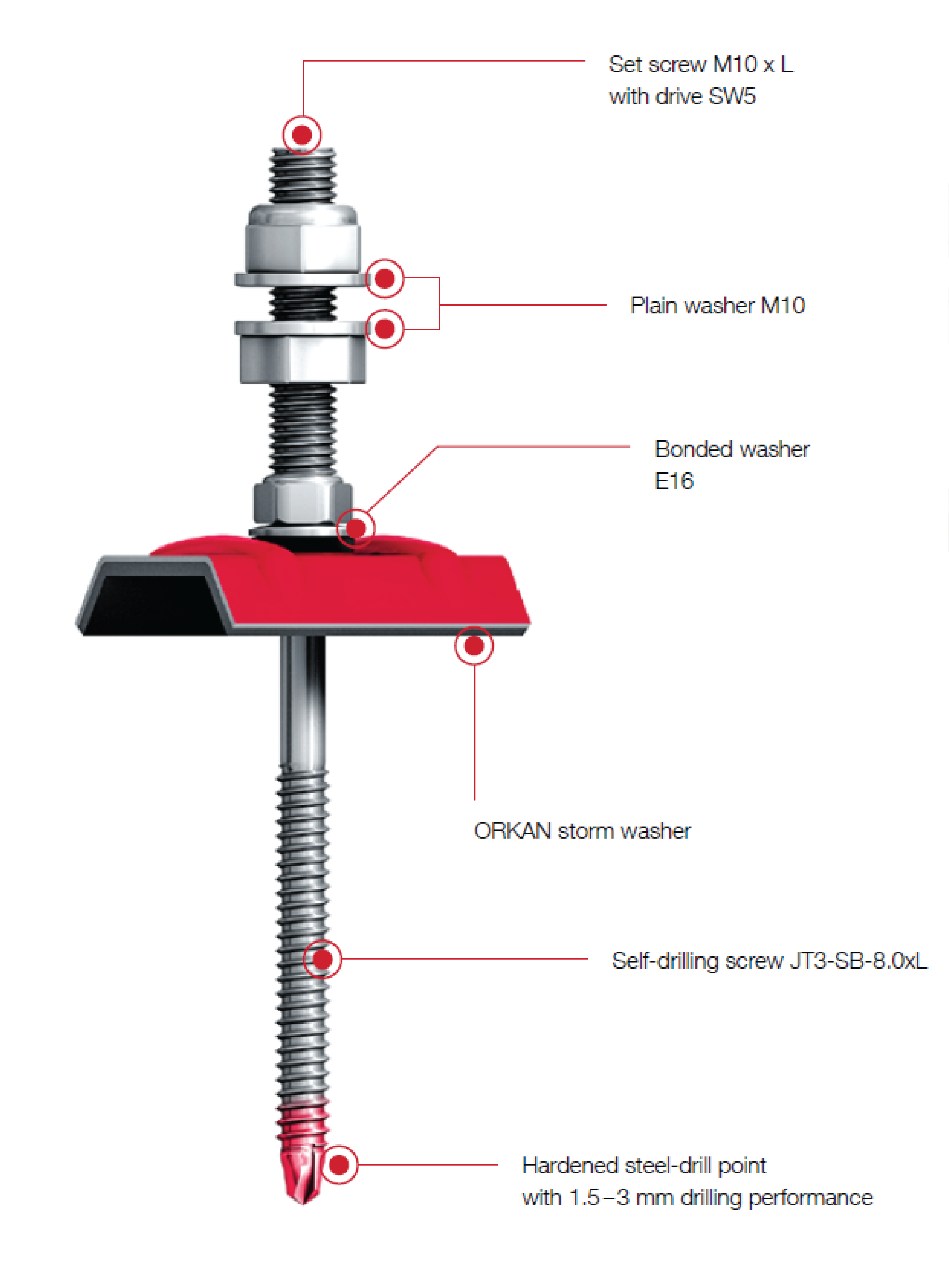

JT3 SB 3 8.0xL
A bi-metallic self-drilling fastener for steel substructure applications. The head and main threaded section are made of A2 stainless steel with a hardened carbon steel drill point and lead-in threads.
