JT3 3 5.5
For profiled / aluminium roofing and cladding sheets to light steel sections

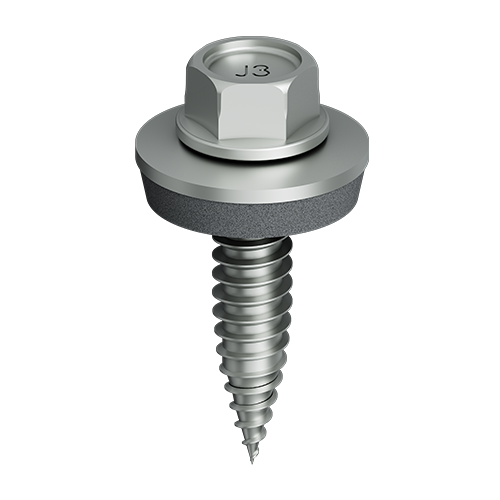

EJOT® JF3 2 5.5
Specification
-
Applications
- Lap stitching of steel/aluminium roofing and cladding sheets & stitching of steel/aluminium flashings to roofing and cladding sheets
-
Properties
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Non-skid application
- Pierce point geometry designed to minimise swarf generation
- Can be used in conjunction with S16/S19 stainless/EPDM vulcanised sealing washers
-
Technical specifications
- Drive: 8 mm clip hex one piece socket
- Stitching 2 x 0.5 mm up to 2 x 0.88 mm in thickness
- Material: A2 stainless steel with innovative point geometry
When choosing your product below please ensure it is suitable for your application before purchase.
When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities
* To see prices, please log in here.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Ø Sealing Washer mm | ø mm | Clamp thickness mm | Unit | Availability | * Price / 100 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| JF3 2 5.5 x 25 | 7380639301 | 25.0 | 0 - none | 5.5 | 0.0 - 7.0 | 1.0 | Hexagon 8mm AF | 100 | |||
| JF3 2 5.5 x 25 S16 | 3597211391 | 25.0 | 16 | 5.5 | 0.0 - 7.0 | 1.0 | Hexagon 8mm AF | 100 | |||
| JF3 2 5.5 x 25 S19 | 9900103095 | 25.0 | 19 | 5.5 | 0.5 - 8.0 | 1.0 | Hexagon 8mm AF | 100 | |||
| JF3-2-5.5x35-E16 | 3597511391 | 35.0 | 16 | 5.5 | 0.0 - 17.0 | 1.0 | Hexagon 8mm AF | 100 | |||
| 7380644301 | 35.0 | 5.5 | 0.0 - 17.0 | 1.0 | Hexagon 8mm AF | 100 | |||||
Delivery status:
- Stock
- No Stock
