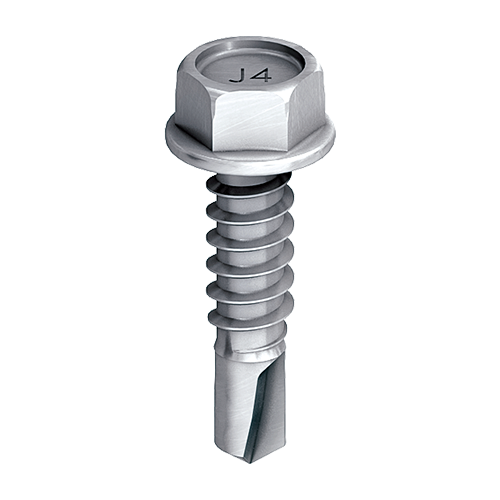

EJOT® JT4 6 5.5

Specification

  • Applications

    • Especially suited for aluminium sheets and sections/ helping hand brackets to aluminium 2.0mm - 6.0mm
  • Properties

    • Available unwashered
    • Can be used in conjunction with A15 aluminium / EPDM vulcanised sealing washes
  • Technical specifications

    • Material: Fully A2 Austenitic Stainless Steel
    • Drive: 8mm clip hex socket

When choosing your product below please ensure it is suitable for your application before purchase.

When choosing your product variant below, you can still complete your order including products displayed as “available soon”. On completion of the checkout process, you will receive an email confirming the delivery date of outstanding quantities

* To see prices,  please log in here.

Filter

Selected filters

    Orderidentifier Article Number Length mm Ø Sealing Washer mm ø mm Clamp thickness mm Unit Availability * Price / 100
    JT4 6 5.5 x 19 7380454301 19.0 0 - none 5.5 2.0 - 8.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    19.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    2.0 - 8.0
    Maximum drilling capacity
    6.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT4 6 5.5 x 19
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT4 6 5.5 x 19 A15 9900030063 19.0 14 5.5 2.0 - 5.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    19.0
    Ø Sealing Washer mm
    14
    ø
    5.5
    Clamp thickness
    2.0 - 5.0
    Maximum drilling capacity
    6.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT4 6 5.5 x 19 A15
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT4 6 5.5 x 22 7380508301 22.0 0 - none 5.5 0.0 - 10.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    22.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    0.0 - 10.0
    Maximum drilling capacity
    6.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT4 6 5.5 x 22
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT4 6 5.5 x 22 A15 9900030064 22.0 14 5.5 2.0 - 8.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    22.0
    Ø Sealing Washer mm
    14
    ø
    5.5
    Clamp thickness
    2.0 - 8.0
    Maximum drilling capacity
    6.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT4 6 5.5 x 22 A15
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT4 6 5.5 x 30 7380509301 30.0 0 - none 5.5 0.0 - 18.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    30.0
    Ø Sealing Washer mm
    0 - none
    ø
    5.5
    Clamp thickness
    0.0 - 18.0
    Maximum drilling capacity
    6.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT4 6 5.5 x 30
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
    JT4 6 5.5 x 30 A15 9900030234 30.0 14 5.5 2.0 - 16.0 100 Please login to check the price Please login to check the price

    Specifications

    Length
    30.0
    Ø Sealing Washer mm
    14
    ø
    5.5
    Clamp thickness
    2.0 - 16.0
    Maximum drilling capacity
    6.0
    Drive
    Hexagon 8mm AF
    Availability
    Orderidentifier
    JT4 6 5.5 x 30 A15
    Unit
    100
    * Price / 100
    Please login to check the price Please login to check the price
